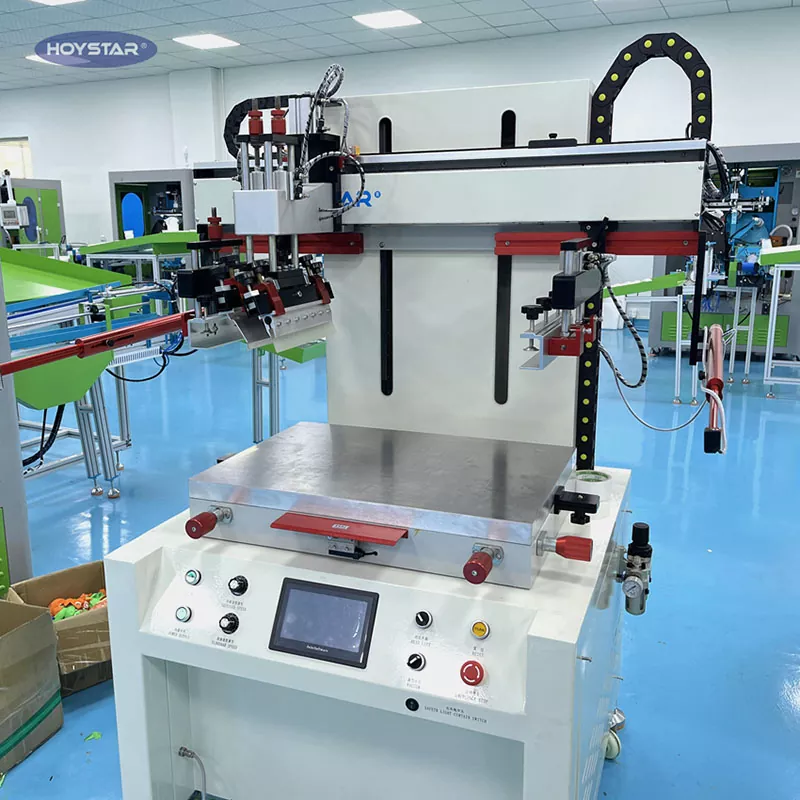

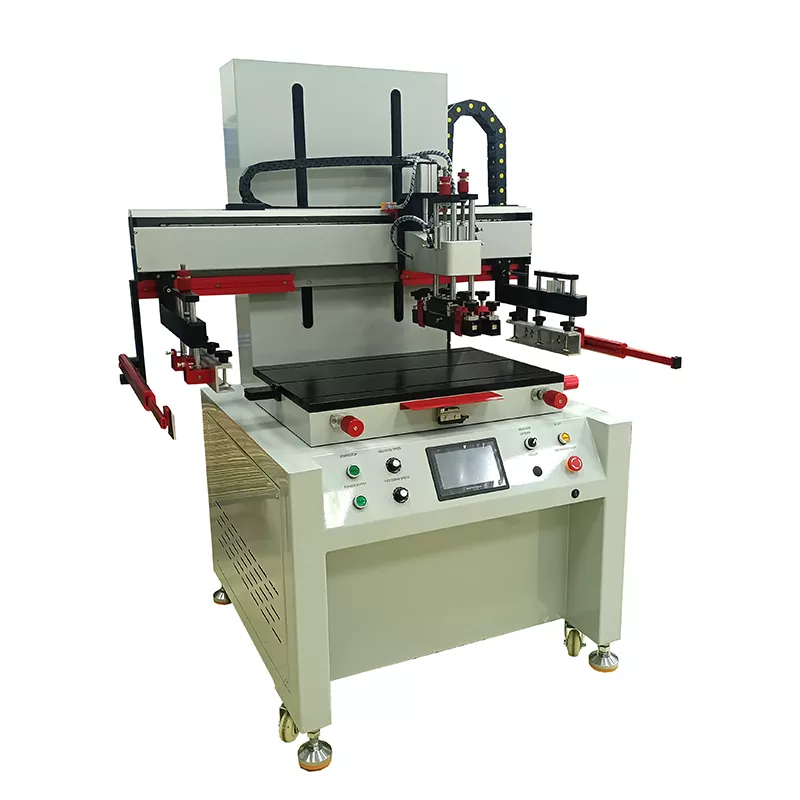

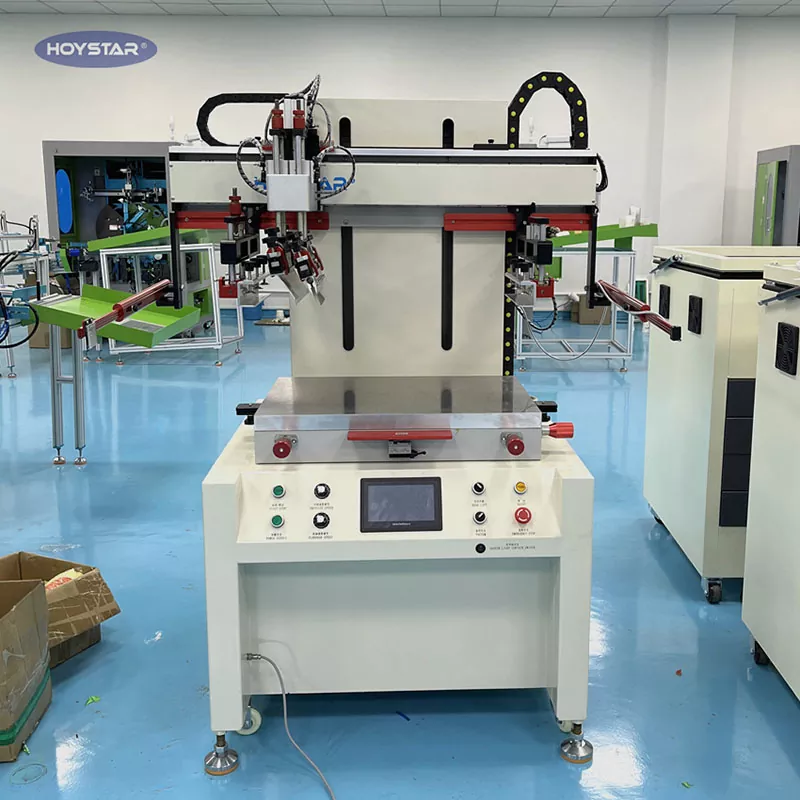

Flat Bed Screen Printing Machine

As the professional manufacturer and supplier, This HOYSTAR Flat Bed Screen Printing Machine is designed for printing on various flat items, Equipped with a vacuum suction worktable effectively prevents the displacement of flat printing materials Whether printing with paper or plastic film, this function guarantees that each printing product meets the high-quality requirements of customer.

Product Parameter (Specification)

Product Feature And Application

For feature:

1. Equipped with PLC with touch screen interface for intuitive operation and control.

2. Built-in 4-digit automatic counter for accurate operation tracking.

3.Multiple printing cycle modes to accommodate various printing techniques and application requirements.

4.Durable coin-alloy frame with a protective metal-coated surface.

5.Dual-column vertical structure ensures high precision and stable performance.

6.Equipped with a constant-pressure squeegee system to maintain consistent printing pressure.

7. Adjustable angles for both the squeegee and ink reclaim blade for optimal control.

8.Worktable can be adjusted forward-backward and left-right, with a reliable locking mechanism for secure positioning.

9.Screen frame adjustable in forward-backward, left-right, and level orientations for precise alignment.

10. Print head lift function facilitates easy screen frame placement and removal.

11. Features a German ORIGA rodless cylinder for transverse movement and Taiwan-made Ruike electronic switches for accurate travel control.

12. High-strength worktable with evenly distributed suction holes and strong vacuum absorption for precise registration.

13. Safety scrambling device installed on the worktable to prevent hand injuries.

14.Taiwan CEC shock absorbers integrated to minimize vibration.

High-speed operation with low noise emission and exceptional overall stability.

For applications:

this Flat Bed Silk Screen Printing Machine is designed for printing on various flat items whose size is within 400*600 mm, such as paper, PVC sheet, plastic film, textile, keyboard, circuit board, CD disk, plastic box, ruler and so on.

Production Details

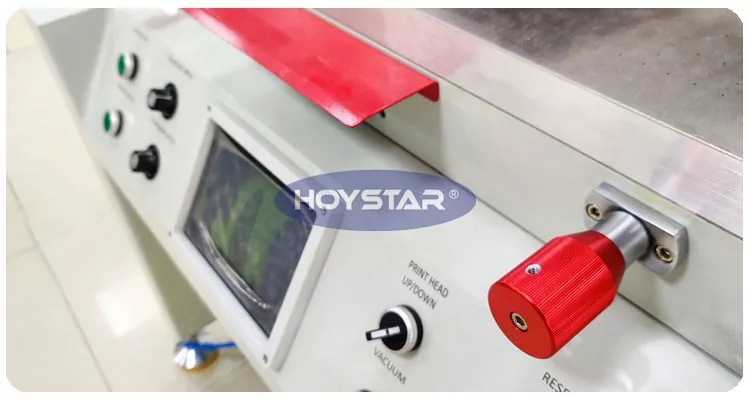

The Flat Bed Silk Screen Printing Machine with a PLC and touch screen panel, operation is intuitive—even for new users. The interface allows easy adjustment of printing speed, printing mode, etc.

Can change screen frame for print different patter or logo on product and can use different size of screen frame.

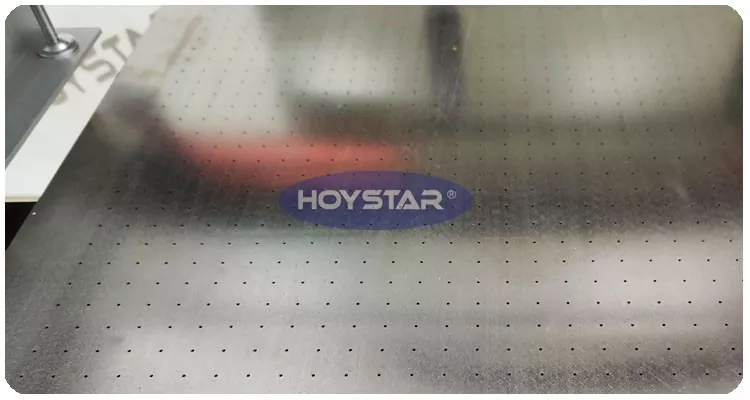

Equipped with a vacuum suction worktable effectively prevents the displacement of flat printing materials

Equipped with an automatic induction mounting device to prevent the print head from getting stuck in your hand when it drops during printing.
