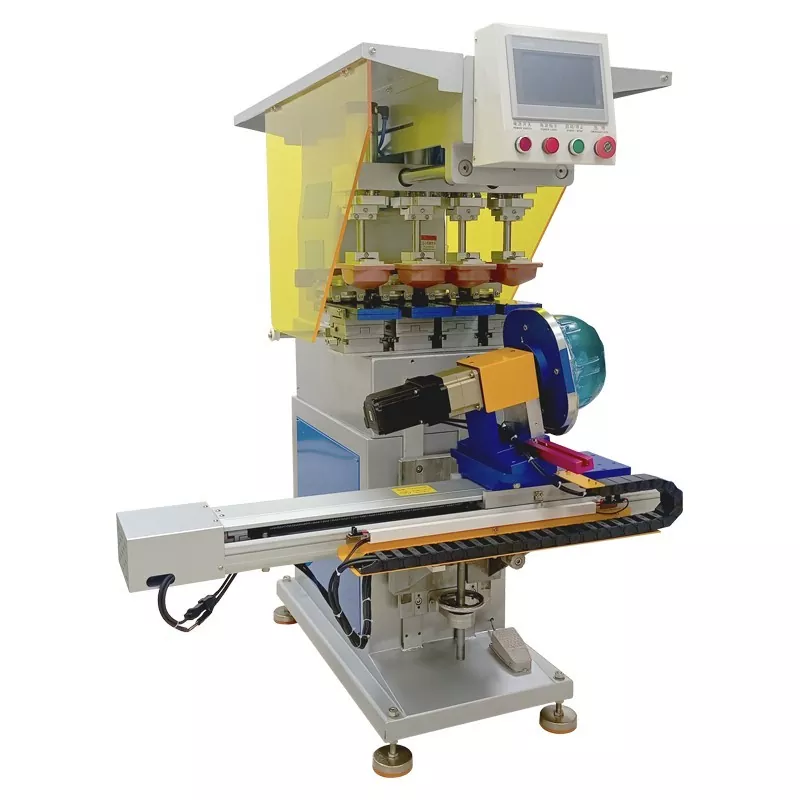

4 Color Pad Printing Machine For Helmet

Shop customized 4 Color Pad Printing Machine For Helmet from Dongguan Hoystar Machinery Co., Ltd., which is one of the manufacturers and suppliers in China. This HOYSTAR 4 Color Pad Printing Machine For Helmet equipped with PLC touch screen control panel easy to operation. This machine features servo motor control for automatic rotary printing, offering options to print on 1 side, 2 sides, or 4 sides of helmets. The worktable is driven left/right, rotary angel,  product heights can be adjusted. Each printing head is independently adjustable and can be set up separately.

Product Parameter (Specification)

Product Feature And Application

For feature:

1. Integrated control system featuring Japan Mitsubishi PLC and touchscreen control panel for precise operation.

2. Servo motor-driven automatic rotation enables flexible helmet printing options: 1-side, 2-side, or 4-side printing.

3. Worktable lateral (left/right) movement controlled by servo motor for smooth and accurate positioning.

4. Worktable height is adjustable to accommodate products of varying heights.

5. Independent print heads allow for separate setup and operation of each printing unit.

6. Equipped with a closed ink cup system to minimize ink waste and ensure cleanliness.

7. Air pressure for each individual print head is independently adjustable.

Production Details

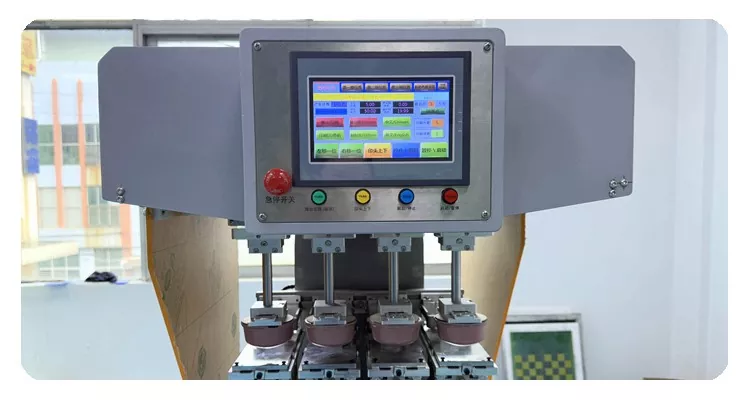

The 4 Color Pad Printing Machine For Helmet equipped with touch panel to control

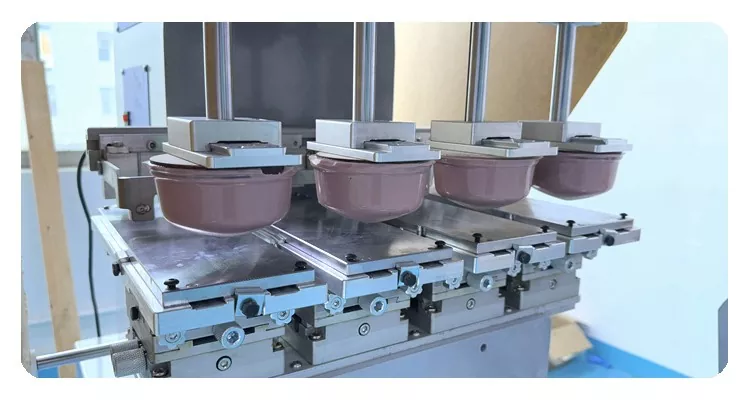

4 print heads can separate setup and operation of each printing unit

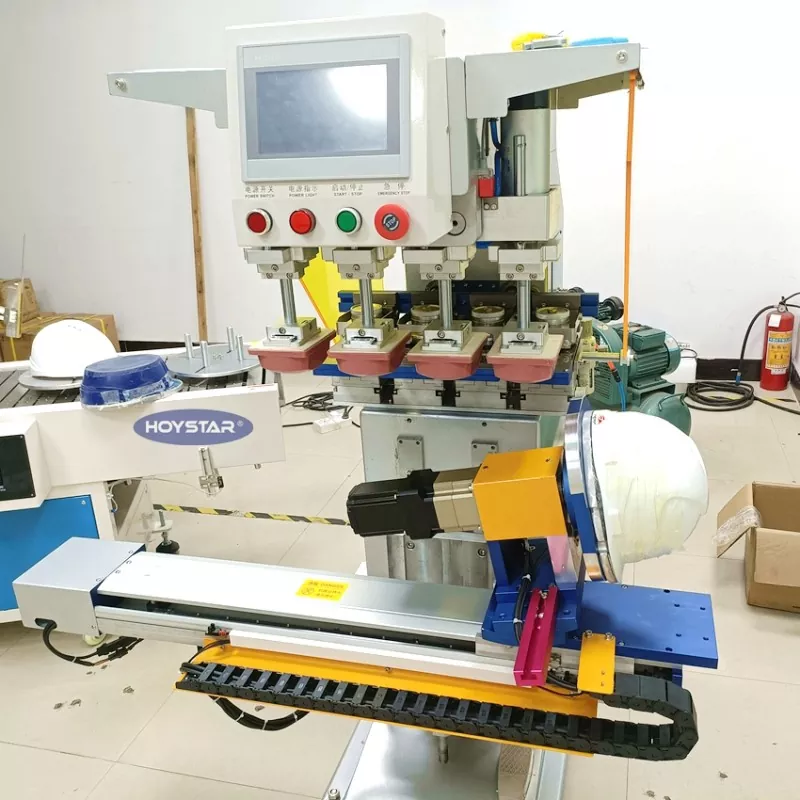

Shuttle worktable, capable of printing four colors at once.

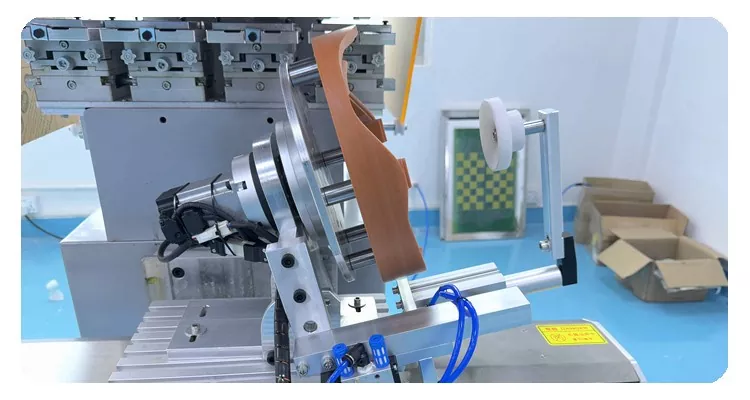

Custom fixture can automatic rotation to print 1 side, 2 sides, or 4 sides
