A Desktop UV Exposure Machine is a compact yet powerful tool widely used in PCB manufacturing, screen printing, photopolymer plate making, and precision imaging processes. As electronics prototyping and small-batch manufacturing continue to grow, desktop UV exposure solutions have become indispensable for laboratories, startups, and educational institutions.
This in-depth guide explains how desktop UV exposure machines work, their core components, applications, benefits, and selection criteria. We also compare them with traditional exposure systems, analyze technical specifications, and answer frequently asked questions—helping you make an informed purchasing decision.

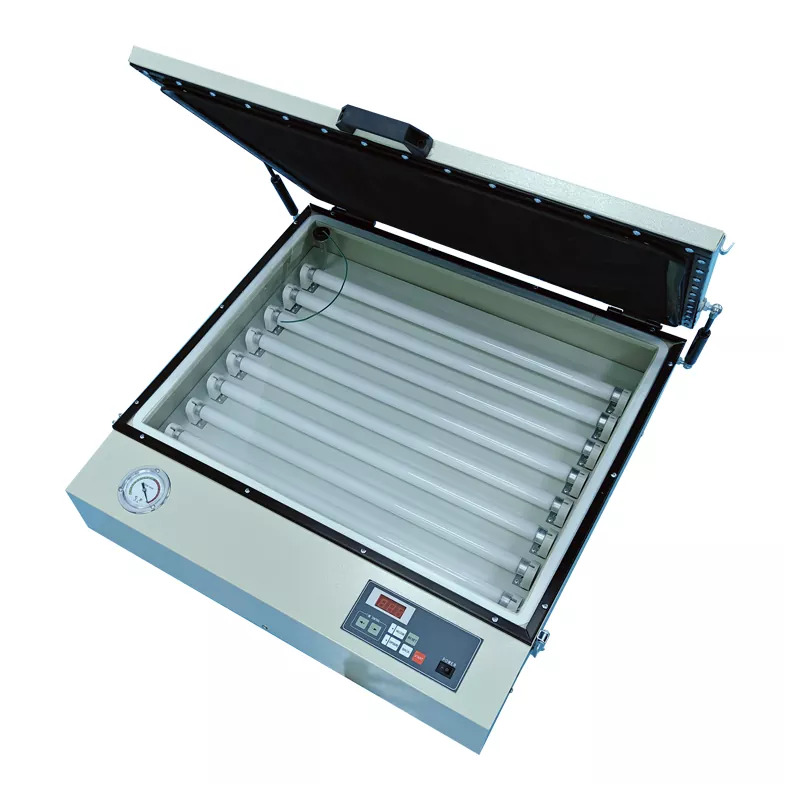

A Desktop UV Exposure Machine is a compact ultraviolet light exposure system designed for transferring circuit patterns or images onto photosensitive materials. Unlike large industrial UV exposure units, desktop models are optimized for small-scale production, prototyping, and laboratory environments.
These machines are commonly used in:
Manufacturers like HOYSTAR have refined desktop UV exposure machines to deliver industrial-grade precision while maintaining affordability and ease of use.
The working principle of a desktop UV exposure machine is based on controlled ultraviolet radiation interacting with photosensitive materials.
Modern desktop UV exposure machines use high-uniformity UV lamps or LED UV sources to ensure consistent exposure across the entire working area.
| Component | Function |
|---|---|
| UV Light Source | Provides controlled ultraviolet radiation for exposure |
| Vacuum Frame | Ensures tight contact between film and substrate |
| Timer Control Panel | Allows precise exposure time adjustment |
| Reflective Chamber | Improves light uniformity and efficiency |
| Cooling System | Maintains stable operating temperature |
High-quality machines from brands like HOYSTAR integrate advanced reflectors and digital timers to achieve repeatable results.
Desktop UV exposure machines are extensively used in PCB labs for rapid prototyping, allowing engineers to validate designs quickly without outsourcing.
They are ideal for exposing emulsions on screens used in textile printing, signage, and industrial marking.
Universities and R&D labs rely on desktop UV exposure machines for hands-on training and experimental fabrication.
For startups and small manufacturers, desktop UV exposure machines provide an optimal balance between performance and investment.
| Specification | Typical Range |
|---|---|
| Exposure Area | A4 / A3 / Custom |
| UV Wavelength | 365–405 nm |
| Exposure Time | 10–300 seconds |
| Light Uniformity | ≥85% |
| Power Supply | 110V / 220V |
When sourcing from experienced manufacturers such as HOYSTAR, users benefit from customizable configurations and reliable technical support.
| Feature | Desktop UV Exposure Machine | Industrial UV Exposure Machine |
|---|---|---|
| Size | Compact | Large-scale |
| Production Volume | Low to medium | High |
| Cost | Affordable | High investment |
| Flexibility | High | Moderate |
Proper maintenance significantly extends machine lifespan and exposure accuracy.
Yes, for small-batch and prototype production, desktop UV exposure machines deliver excellent consistency and cost efficiency.
Depending on usage, UV lamps typically last 800–1500 hours. LED UV systems last significantly longer.
Absolutely. A single desktop UV exposure machine can support PCB exposure, screen printing, and photopolymer processing.
Vacuum systems improve resolution and are highly recommended for fine-line PCB designs.
A Desktop UV Exposure Machine is an essential investment for anyone involved in PCB prototyping, printing, or photochemical processing. Its compact design, precise control, and affordability make it an ideal solution for modern manufacturing environments.
Choosing a trusted supplier like HOYSTAR ensures stable performance, customization options, and long-term technical support.
If you are looking to enhance your production efficiency and exposure accuracy, now is the perfect time to upgrade your setup—contact us today to explore professional desktop UV exposure solutions tailored to your needs.
