In today's competitive printing industry, businesses require equipment that delivers precision, efficiency, and consistent quality across large-format materials. As a trusted manufacturer in the screen printing equipment sector, HOYSTAR provides advanced Large Format Vacuum Flat Screen Printing Machine solutions designed to meet the growing demands of industrial graphics, advertising, electronics, glass decoration, packaging, signage, and specialty printing applications. By integrating vacuum adsorption technology with high-accuracy screen printing systems, these machines enable manufacturers to achieve superior print registration, improved productivity, and outstanding print quality on a wide range of substrates.
A Large Format Vacuum Flat Screen Printing Machine combines vacuum table technology, precision printing control, and large-format capability to deliver accurate and reliable printing results. This article explores how these machines work, their key features, technical advantages, applications, performance benefits, maintenance considerations, and how businesses can select the right model for their production needs.

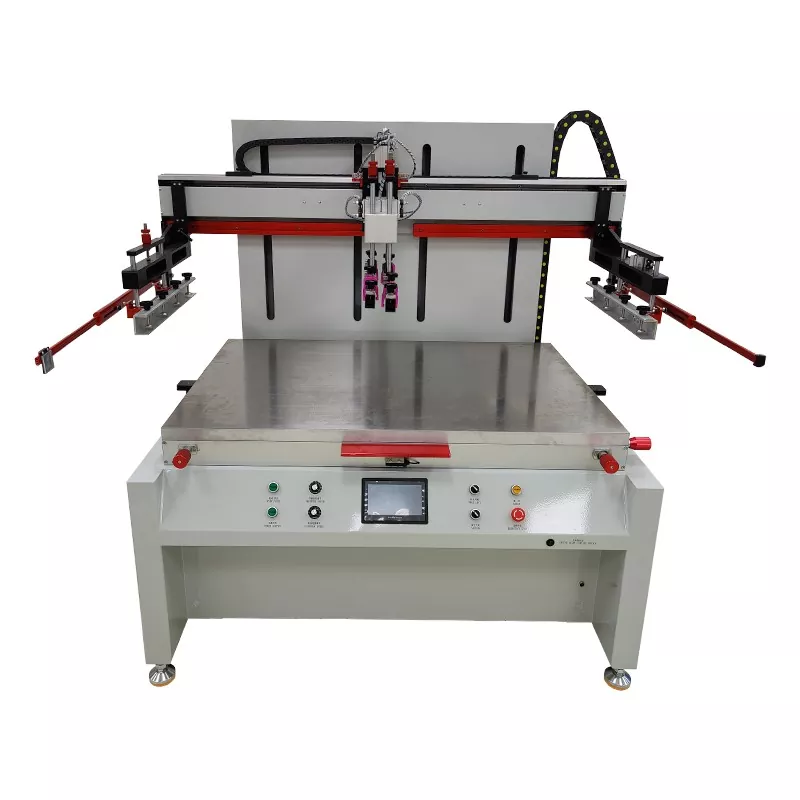

A Large Format Vacuum Flat Screen Printing Machine is a specialized printing system designed for high-precision printing on flat materials. Unlike traditional screen printing equipment, it utilizes a vacuum adsorption table that securely holds substrates in place throughout the printing process.
The vacuum system minimizes material movement, ensuring accurate registration and consistent image quality. These machines are widely used for printing on:
Because of their large-format capability, manufacturers can print oversized graphics and industrial designs while maintaining exceptional accuracy.
The operating principle combines vacuum positioning technology with traditional screen printing methods.
The process generally includes:
The vacuum platform prevents shifting, warping, or movement of materials, resulting in precise image reproduction even on large surfaces.
Modern Large Format Vacuum Flat Screen Printing Machines incorporate advanced engineering features that significantly improve production efficiency and print quality.
The vacuum table creates strong and uniform suction, keeping materials completely flat during printing. This is especially important for lightweight, thin, or flexible substrates.
These machines support oversized materials, enabling the production of large advertising signs, industrial panels, and decorative graphics without compromising quality.
High-accuracy positioning systems ensure excellent color alignment and repeatability for multi-color printing applications.
Heavy-duty steel construction minimizes vibration and improves long-term operational stability.
| Parameter | Typical Range |
|---|---|
| Printing Area | 1200×2400 mm to customized sizes |
| Printing Accuracy | ±0.05 mm to ±0.10 mm |
| Vacuum Table Type | Full-area adsorption platform |
| Printing Speed | 300–1200 cycles/hour |
| Suitable Materials | Glass, PVC, Acrylic, Metal, PCB |
| Drive System | Pneumatic or Servo Control |
| Operation Mode | Semi-Automatic / Automatic |
| Ink Compatibility | UV, Solvent, Water-Based |
Large Format Vacuum Flat Screen Printing Machines serve a wide variety of industries where precision and consistency are critical.
| Feature | Vacuum Flat Screen Printing Machine | Conventional Screen Printer |
|---|---|---|
| Material Stability | Excellent | Moderate |
| Large Format Capability | High | Limited |
| Registration Accuracy | Very High | Average |
| Printing Consistency | Excellent | Variable |
| Production Efficiency | High | Medium |
| Multi-Color Precision | Outstanding | Limited |
Investing in a Large Format Vacuum Flat Screen Printing Machine offers substantial advantages for production facilities seeking higher output and better quality control.
The vacuum system eliminates substrate movement, ensuring crisp images and sharp details.
Automated features reduce setup time and increase throughput.
Accurate positioning minimizes printing errors and lowers rejection rates.
The machine supports various rigid and semi-rigid materials, allowing manufacturers to diversify their product offerings.
Greater efficiency and reduced waste contribute to long-term operational savings.
When evaluating a Large Format Vacuum Flat Screen Printing Machine, several factors should be carefully considered.
Partnering with an experienced manufacturer such as HOYSTAR can help businesses identify the most suitable configuration based on their specific production goals.
Routine maintenance is essential for ensuring stable performance and extending machine lifespan.
Preventive maintenance significantly reduces downtime and helps maintain consistent print quality.
As industrial manufacturing continues to evolve, Large Format Vacuum Flat Screen Printing Machines are incorporating more intelligent technologies.
Emerging trends include:
These innovations will further improve production efficiency while reducing operational costs.
The machine can print on glass, acrylic, PVC, metal sheets, wood panels, electronic substrates, packaging boards, and many other flat materials.
Vacuum adsorption prevents substrate movement during printing, improving registration accuracy and print consistency.
Yes. Most modern models are compatible with UV, solvent-based, and water-based inks.
Absolutely. Large-format vacuum screen printing machines are designed for continuous industrial production environments.
Advertising, signage, glass decoration, electronics manufacturing, packaging, automotive components, and industrial product marking industries benefit significantly from this technology.
A Large Format Vacuum Flat Screen Printing Machine represents one of the most reliable and efficient solutions for industrial-scale printing applications. By combining advanced vacuum adsorption technology, precise registration control, large-format capabilities, and exceptional material compatibility, these machines help manufacturers achieve superior print quality while maximizing productivity and profitability. Whether your business operates in signage, glass decoration, electronics, packaging, or industrial manufacturing, investing in the right screen printing solution can create a significant competitive advantage in today's market.
If you are looking for a dependable supplier of advanced Large Format Vacuum Flat Screen Printing Machines, HOYSTAR offers professional solutions tailored to your production requirements. Contact us today to discuss your project, receive expert technical guidance, and discover how our innovative printing equipment can help elevate your manufacturing efficiency and product quality to the next level.
