Roll To Roll Screen Printing Machine

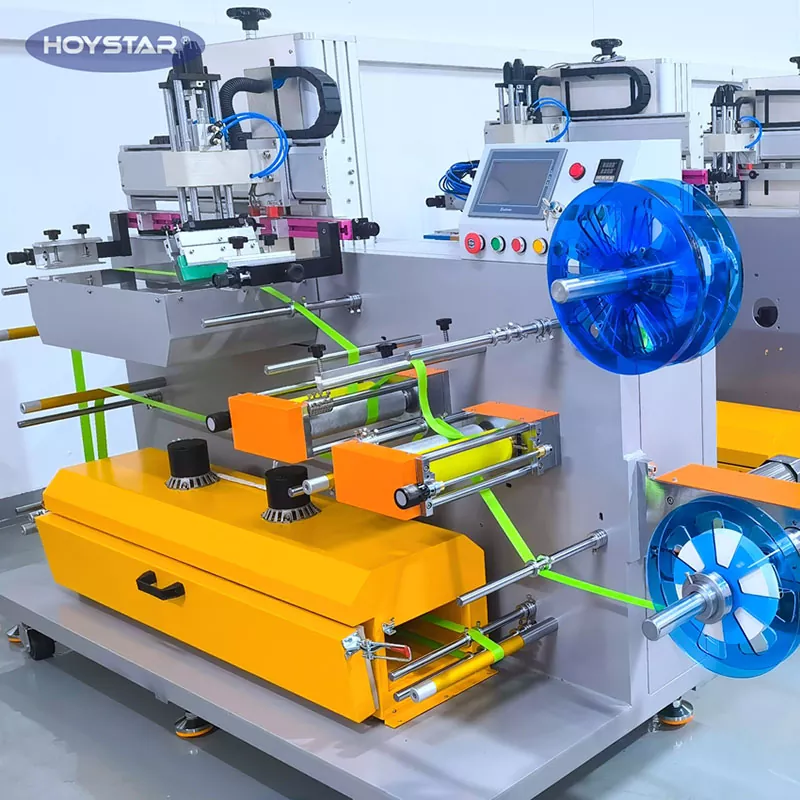

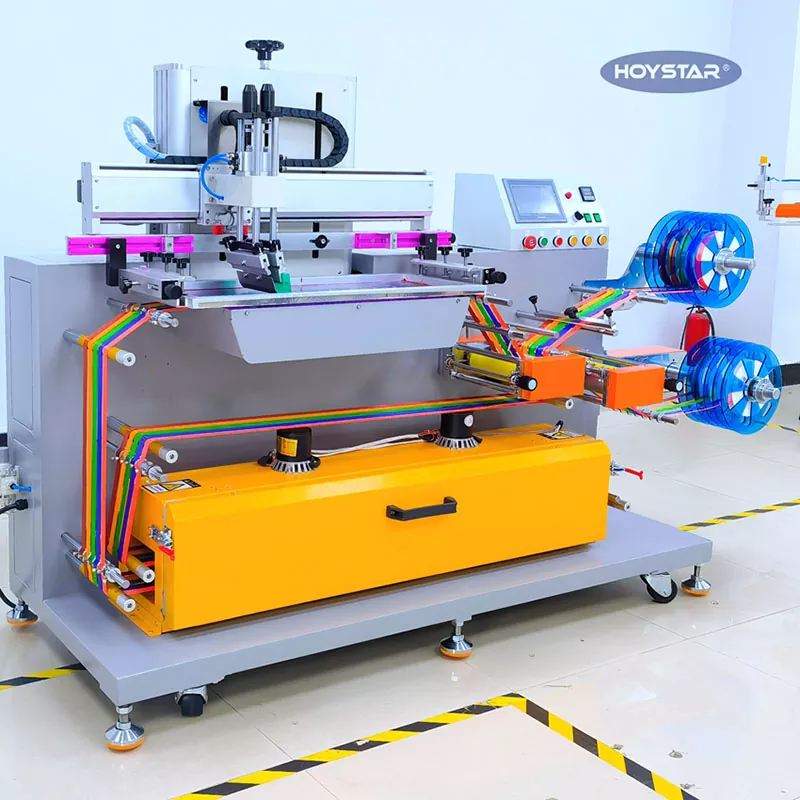

HOYSTAR is a reliable manufacturer and supplier in China; This HOYSTAR Roll To Roll Screen Printing Machine is designed for printing on various ribbon. Double reel mode ensures stable feeding and smooth production. PLC touch screen control, user-friendly interface for safe, intuitive operation. Double-layered drying oven with hot air circulation can dry the ink quickly and evenly.

Product Parameter (Specification)

Product Feature And Application

For feature:

1.Screen frame position is precisely adjustable forward/backward and left/right.

2.Automatic raising and lowering of the screen frame simplifies cleaning and maintenance.

3. Supports both semi-automatic and full automatic printing modes for flexible operation.

4.Equipped with a double-layer feed  hot air circulation system dryer for efficient drying.

5.Double-layer feed dryer with a hot air circulation system.

6.Electrically controlled print stroke (pull length is adjustable).

7.Receiving motor features automatic start/stop capability.

8.Left/right movement is electronically controlled with adjustable printing stroke.

For applications:

This Roll To Roll Screen Printing Machine is suitable for printing on various ribbon materials, including polyester ribbon, satin ribbon, striped ribbon, webbing, lanyard, and functional tags. Whether you’re producing clothing tags, gift ribbons, ID Badges and Keys lanyard or industrial labels, this ribbon screen printing machine can provide excellent printing results.

Production Details

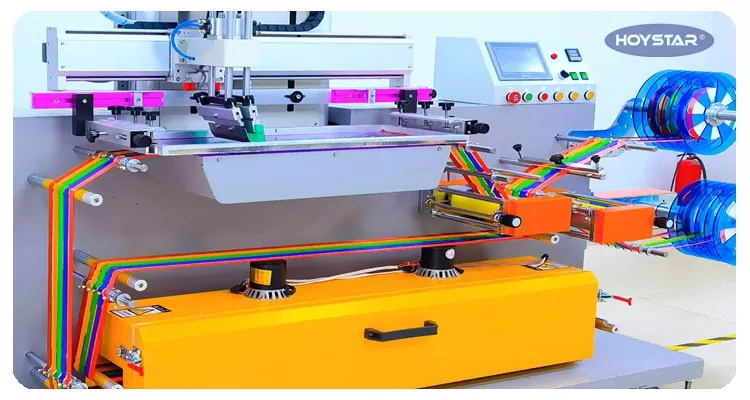

The roll to roll ribbon screen printing machine with double reel mode ensures stable feeding and rewinding, eliminating material slippage during production. With both semi-automatic and automatic modes, operators can adapt to different production needs, from small batches to high-volume runs.

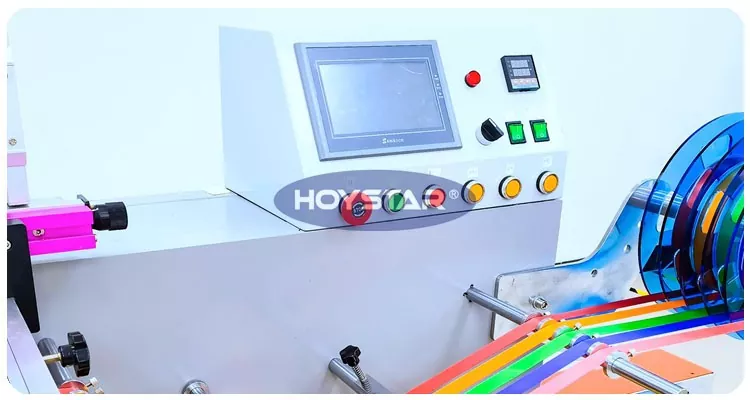

Equipped with a PLC and touch screen panel, operation is intuitive—even for new users. The interface allows easy adjustment of printing speed, printing mode, and oven settings.

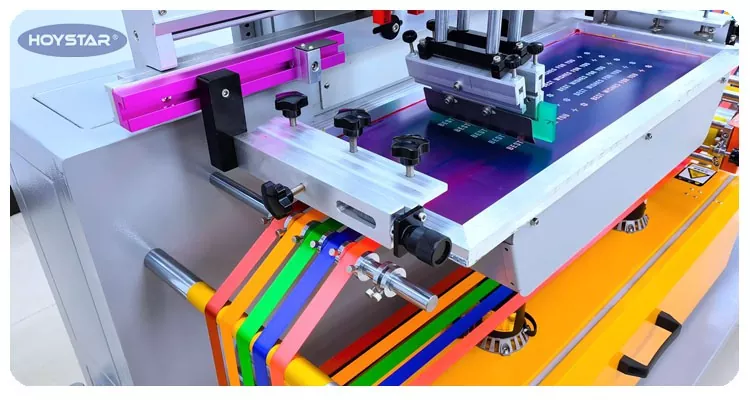

Can change screen frame for print different patter or logo on ribbon. The screen frame is snap-off mode when printing, which can be applied to printing with different inks.

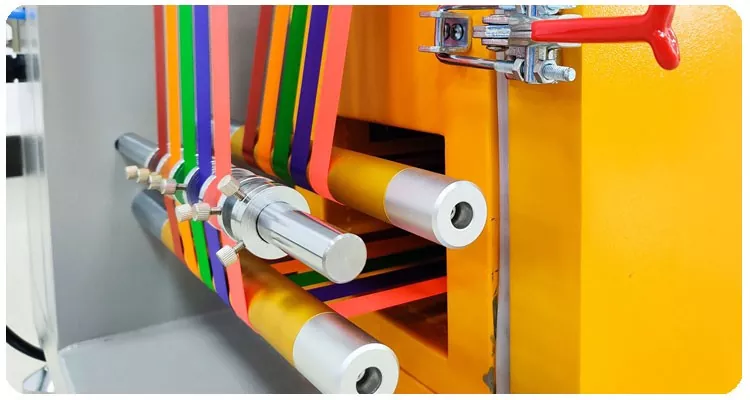

Equipped with double-layer oven with hot air circulation, it shortens drying time by allowing ribbon to pass through two layers, boosting output without compromising drying quality. And the oven temperature is adjustable, ensuring compatibility with various ink types, from plastisol to solvent-based ink.
