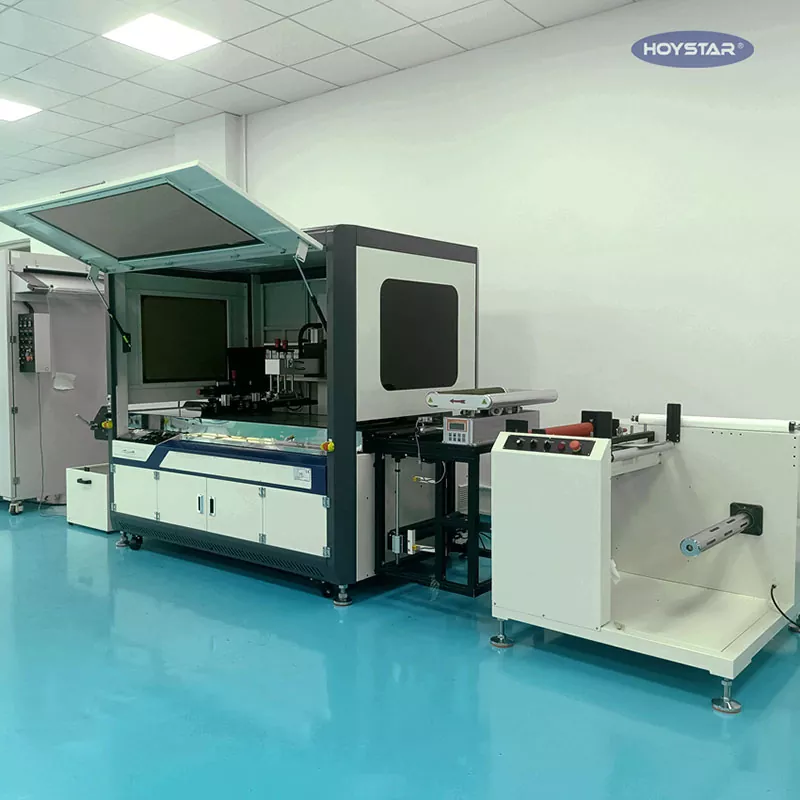

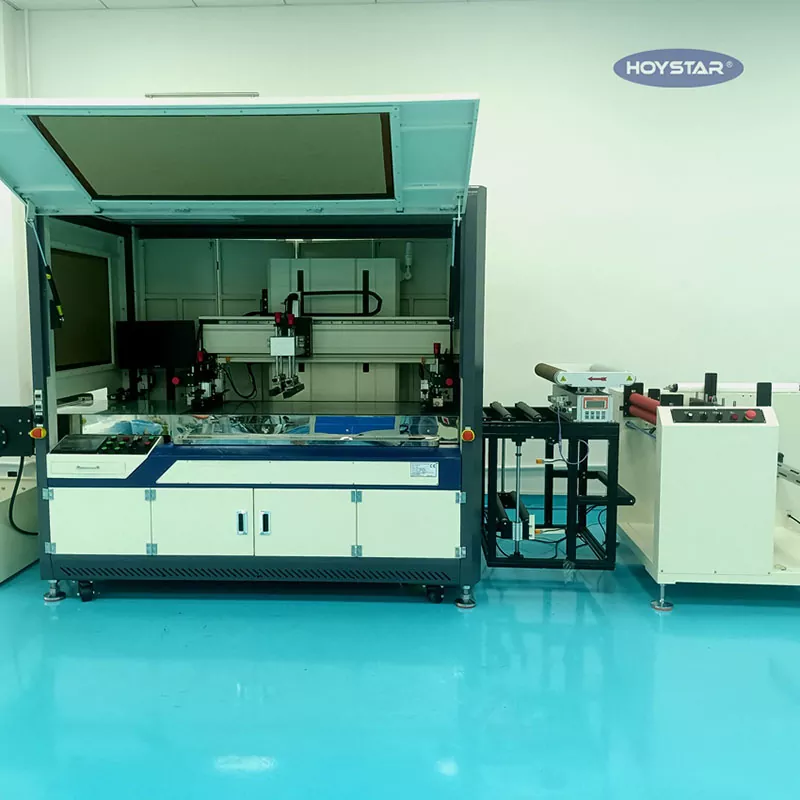

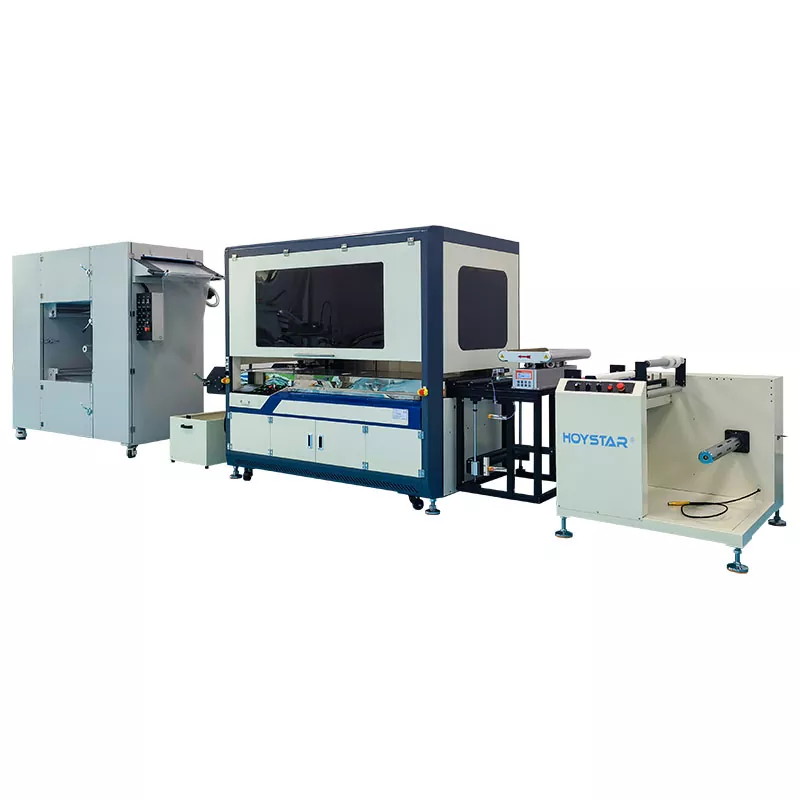

This HOYSTAR supplies Film Roll To Roll Screen Printing Machine. Machine equipped with photoelectric registration, PLC touchscreen controls, customizable settings, suitable for printing on various film,tapes,etc.
|
Name |
Model |
||||
|
4070 |
5070 |
6080 |
80120 |
||
|
Host parameters |
Workbench area (length × width) mm |
1530×450 |
1530×550 |
1670×650 |
2230×850 |
|
Maximum feed width (mm) |
410 |
510 |
610 |
810 |
|
|
Maximum printing area (length × width) mm |
700×400 |
700×460 |
800×580 |
1200×800 |
|
|
Maximum frame area (length × width) mm |
1000×700 |
1000×800 |
1100×900 |
1100×900 |
|
|
Minimum grid area (length × width) mm |
500×300 |
500×400 |
500×500 |
500×500 |
|
|
Printing thickness (mm) |
0.05 - 0.38 |
0.05 - 0.38 |
0.05 - 0.38 |
0.05 - 0.38 |
|
|
Minimum printing jump distance (mm) |
5 |
5 |
5 |
5 |
|
|
Printing machine operating voltage (V) |
380 |
380 |
380 |
380 |
|
|
Maximum power of the main unit (KW) |
2.5 |
2.5 |
2.5 |
2.5 |
|
|
Working air pressure (kg/cm²) |
4 - 8 |
4 - 8 |
4 - 8 |
4 - 8 |
|
|
Color matching accuracy range (mm) |
0.05 - 0.1 |
0.05 - 0.1 |
0.05 - 0.15 |
0.05 - 0.15 |
|
|
Main unit dimensions (length × width × height) mm |
2700×1150×1650 |
2700×1250×1865 |
2900×1350×1865 |
3620×1550×1865 |
|
|
Oven parameters |
Oven temperature range (°C) |
Normal temperature - 130 |
Normal temperature - 130 |
Normal temperature - 130 |
Normal temperature - 130 |
|
Oven operating voltage (V) |
380 |
380 |
380 |
380 |
|
|
Drying length (m) |
60 |
60 |
60 |
60 |
|
|
Maximum power of the oven (KW) |
twenty four |
twenty four |
twenty four |
30 |
|
|
Maximum roll diameter for receiving (mm) |
500 |
500 |
500 |
500 |
|
|
Oven dimensions (length × width × height) mm |
2300×1050×2000 |
2300×1150×2000 |
2160×1150×2000 |
2160×1350×2000 |
|
|
Feeder parameters |
Maximum roll diameter for unloading (mm) |
500 |
500 |
500 |
500 |
|
Feeder operating voltage (V) |
220 |
220 |
220 |
220 |
|
|
Maximum power of the feeder (KW) |
0.3 |
0.3 |
0.3 |
0.3 |
|
|
Feeder dimensions (length × width × height) mm |
800×910×1180 |
900×1000×1200 |
1000×1100×1200 |
1200×1100×1200 |
|
1.Film Roll To Roll Screen Printing Machine with repeatable color registration and high-speed performance, achieving 1,200–1,800 prints per hour (varies by product dimensions).
2.PLC touch screen control(Human-Machine Interface), interface is simple and clear, and the operation is easy .
3.Multi-color printing employs photoelectric eye tracking, paired with a PLC + color mark sensor control system for precise positioning. It automatically detects color marks and triggers an immediate shutdown in case of anomalies, reducing waste and errors.
4.Customizable printing parameters including screen frame position, printing pressure, squeegee speed, and screen frame height, allowing tailored settings for optimal results on different product.
5.Customizable printing speed and output counting functionality. The machine automatically stops and alarms once the setting production quantity is reached.
6.Error detection mechanism: The machine will automatically stop and sound an alarm when there is an abnormality in printing or no product.
7.Three section type air suction device, with adjustable settings (strong, weak, or off) to accommodate specific requirements of different product.
8.Auxiliary inspection working lamp for identification of defective products and quality control.
Home Appliance Sector: Panel printing for rice cookers, induction hobs, washing machines, and air conditioners.
Electronics Domain: Electrical membrane switches, flexible printed circuits, copper sheets, aluminum sheets, and LED printed circuits.
Communication and Information Sphere: Mobile phone casings, mobile phone keypads, battery accessories, and peripheral terminal devices.
Apparel and Textile Industry: Transfer printing and label - free tags in the clothing and textile sectors.
Transportation and Shipping Markings: Container and truck compartment labels, as well as motorcycle/bicycle decals.
Instrument Field: Electronic switch and instrument panel labels.

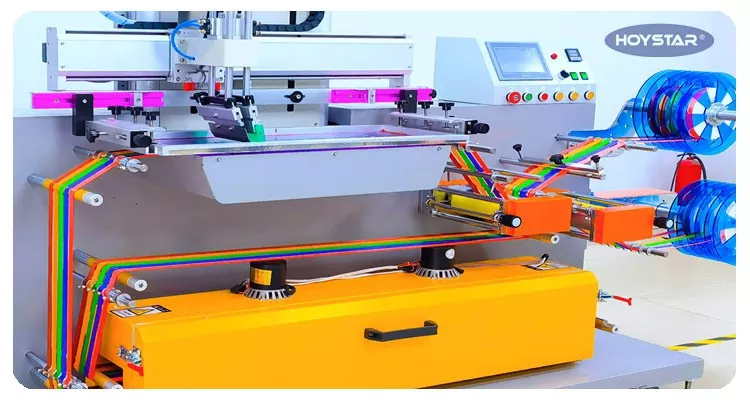

The roll to roll ribbon screen printing machine with double reel mode ensures stable feeding and rewinding, eliminating material slippage during production. With both semi-automatic and automatic modes, operators can adapt to different production needs, from small batches to high-volume runs.

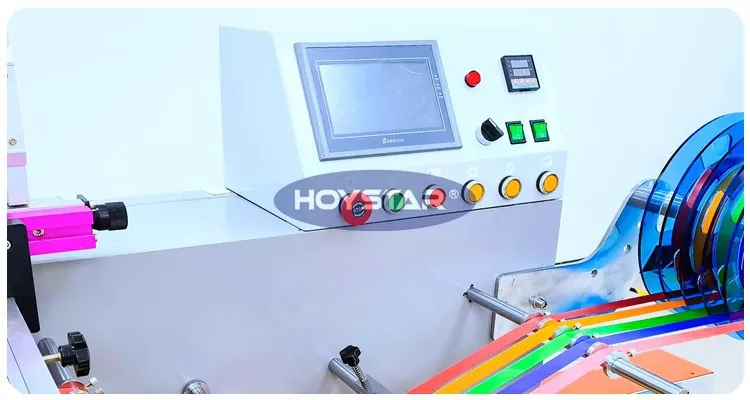

Equipped with a PLC and touch screen panel, operation is intuitive—even for new users. The interface allows easy adjustment of printing speed, printing mode, and oven settings.

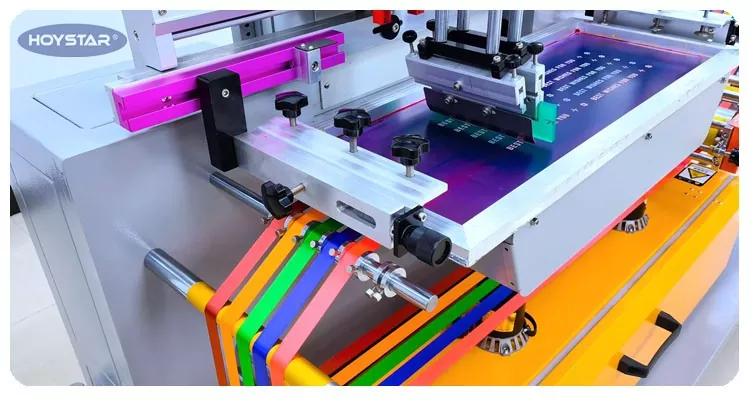

Can change screen frame for print different patter or logo on ribbon. The screen frame is snap-off mode when printing, which can be applied to printing with different inks.

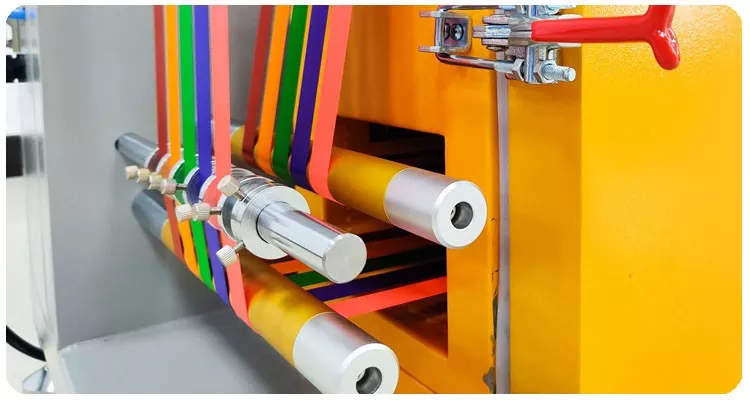

Equipped with double-layer oven with hot air circulation, it shortens drying time by allowing ribbon to pass through two layers, boosting output without compromising drying quality. And the oven temperature is adjustable, ensuring compatibility with various ink types, from plastisol to solvent-based ink.
