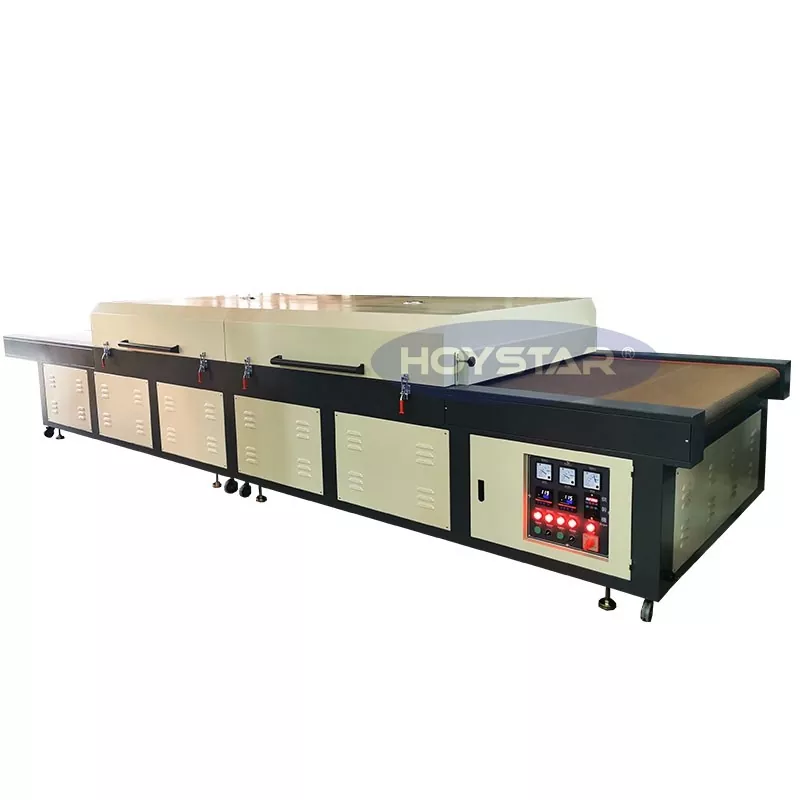

Abstract: A Large Infrared Dryer Machine With Conveyor Belt is designed to provide controlled, continuous, and efficient drying for screen-printed, painted, coated, and heat-treated products. HOYSTAR develops this type of industrial drying equipment for applications involving textiles, banners, paper, plastic, glass, aluminum sheets, and other substrates. With adjustable infrared heating, variable conveyor speed, temperature control, and a hot-air recirculation system, the equipment can support both laboratory testing and mass production while improving drying consistency and production flexibility.
Drying is a critical stage in many printing and coating processes. Even high-quality ink, paint, or adhesive can produce inconsistent results if the drying process is too slow, too hot, or uneven. A Large Infrared Dryer Machine With Conveyor Belt addresses these challenges by combining infrared heating with continuous material transportation.
Unlike a simple static drying oven, a conveyor dryer allows products to enter the heating chamber, pass through a controlled drying zone, and exit continuously. This configuration is particularly useful for manufacturers handling large quantities of printed or coated products.
According to the product information provided by HOYSTAR, the GW-1000LH model is designed for both laboratory applications and mass production. Its adjustable conveyor speed and lamp-to-product distance allow operators to adapt drying conditions to different product sizes and production requirements.
The machine is also designed for a broad range of substrates, including textiles, flags, banners, aluminum sheets, glass, paper, and plastic following processes such as screen printing, painting, hot-setting adhesive application, and inkjet printing.
The basic working principle combines controlled infrared radiation, conveyor transportation, adjustable temperature, and controlled residence time.
This combination gives production operators two important process controls: temperature and conveyor speed. Adjusting both parameters helps manufacturers develop a drying process that matches the characteristics of their ink, coating, adhesive, or substrate.
For industrial buyers, technical specifications are essential when comparing infrared conveyor dryers. The HOYSTAR GW-1000LH provides a large working configuration intended for demanding applications.
| Specification | GW-1000LH | Production Value |
|---|---|---|
| Machine Size | 5000 × 1300 × 1500 mm | Large industrial footprint |
| Inlet Length | 1000 mm | Supports continuous feeding |
| Outlet Length | 1000 mm | Facilitates product unloading |
| Heating Area | 3000 mm | Extended heating zone |
| Belt Width | 1000 mm | Suitable for larger substrates |
| Belt Material | Teflon | Designed for continuous conveying |
| Conveyor Speed | 1–10 m/min | Adjustable production speed |
| Temperature | Up to 200°C | Adjustable according to process needs |
| Infrared Lamps | 20 pieces | Distributed heating capacity |
| Lamp Power | 1 kW × 20 | High-capacity infrared heating |
| Voltage | 380 V | Industrial power configuration |
| Maximum Product Height | 100 mm | Adjustable conveying clearance |
These specifications are based on the published product information for the GW-1000LH. Actual process performance depends on the substrate, coating or ink formulation, product thickness, conveyor speed, ambient conditions, and required drying result.
The infrared lamp configuration can be adjusted according to production requirements. This gives operators greater flexibility when processing products with different thermal characteristics.
The conveyor uses an electric motor and adjustable speed control. The published speed range is 1–10 m/min, allowing users to balance throughput and drying time.
The system supports a temperature range of 0–200°C, allowing operators to establish suitable thermal conditions for different production processes rather than relying on a fixed heating setting.
A hot-air recirculation system is installed above the machine. By recycling heated air, the design can help improve thermal utilization within the drying system.
The inlet and outlet heights can be adjusted to accommodate products with different heights. This is particularly useful for manufacturers processing multiple product formats on the same production line.
The heated chamber includes an adjustable shelter door. Operators can control the opening and closing condition to help retain heat and optimize energy usage during operation.
A large conveyor-based infrared dryer is not limited to one type of product. Its broad application range makes it useful for manufacturers that require controlled post-printing or post-coating drying.
HOYSTAR's published application information specifically identifies textile, flag, banner, aluminum, glass, paper, and plastic products as suitable application categories.
Choosing an industrial dryer should involve more than comparing machine dimensions or heating power. Buyers should evaluate the complete production process.
For international buyers searching for a China manufacturer or industrial drying equipment supplier, technical compatibility should be considered alongside price. A correctly matched system can provide greater value than a lower-cost machine that cannot maintain the required drying conditions.
| Advantage | How It Helps Production |
|---|---|
| Continuous Conveying | Supports uninterrupted product movement through the drying area. |
| Adjustable Speed | Allows operators to balance drying time and production throughput. |
| Wide Working Belt | Provides a 1000 mm belt width for larger-format products. |
| Adjustable Temperature | Helps accommodate different drying requirements. |
| Flexible Product Height | Adjustable conveying clearance supports different product formats. |
| Hot-Air Recirculation | Supports more effective utilization of heated air. |
| After-Sales Support | Helps users address equipment issues and maintenance requirements. |
HOYSTAR states that its Large Infrared Dryer Machine with Conveyor Belt is supplied with a one-year free warranty for qualifying non-human-factor component damage, followed by continued technical support and spare-parts assistance. Remote troubleshooting can also be provided through video or video-call guidance.
It can be used for suitable textile, flag, banner, aluminum, glass, paper, and plastic products after processes such as screen printing, painting, adhesive application, and inkjet printing. The exact drying suitability should be verified according to the substrate and coating formulation.
The published maximum temperature is 200°C, with the temperature adjustable according to production requirements.
Yes. The published conveyor speed range is 1–10 m/min, allowing operators to adjust residence time according to the drying process and production speed.
The standard published belt width is 1000 mm, making the machine suitable for relatively large-format products.
Yes. HOYSTAR states that the machine includes a one-year free warranty for qualifying component damage and provides technical support after the warranty period, including remote troubleshooting and spare-parts assistance.
A Large Infrared Dryer Machine With Conveyor Belt can be an effective solution for manufacturers seeking continuous and controllable drying after printing, painting, coating, or adhesive application. With a 1000 mm belt width, 3000 mm heating area, adjustable 1–10 m/min conveyor speed, 0–200°C temperature range, infrared heating, and hot-air recirculation, the HOYSTAR GW-1000LH is designed around the practical requirements of larger-scale production.
If you are evaluating an industrial infrared dryer for textile printing, screen printing, plastic, paper, glass, aluminum, or other production applications, selecting equipment according to your substrate, drying chemistry, product dimensions, throughput, and installation conditions is essential. For technical specifications, customization options, pricing, or a suitable drying solution for your production line, contact us at HOYSTAR and discuss your requirements with our professional team.
