A Two Color Pad Printer With Shuttle Worktable is a highly efficient industrial printing solution designed for accurate, repeatable, and high-speed multi-color printing on complex and irregular surfaces. This article provides a comprehensive guide covering working principles, key components, efficiency advantages, industry applications, technical comparisons, and purchasing considerations. By understanding how shuttle worktables enhance automation and precision, manufacturers can significantly improve throughput while reducing labor costs and quality risks.
Pad printing is one of the most versatile printing technologies used in modern manufacturing. Unlike flat or screen printing, pad printing allows images to be transferred onto curved, textured, recessed, or irregular surfaces. A two color pad printer takes this capability further by enabling precise multi-color registration in a single automated cycle.
When combined with a shuttle worktable, the system becomes a powerful production tool capable of significantly increasing output while maintaining consistent print quality. Manufacturers in automotive, electronics, medical, and promotional product industries increasingly rely on this configuration to meet high-volume and high-precision demands.

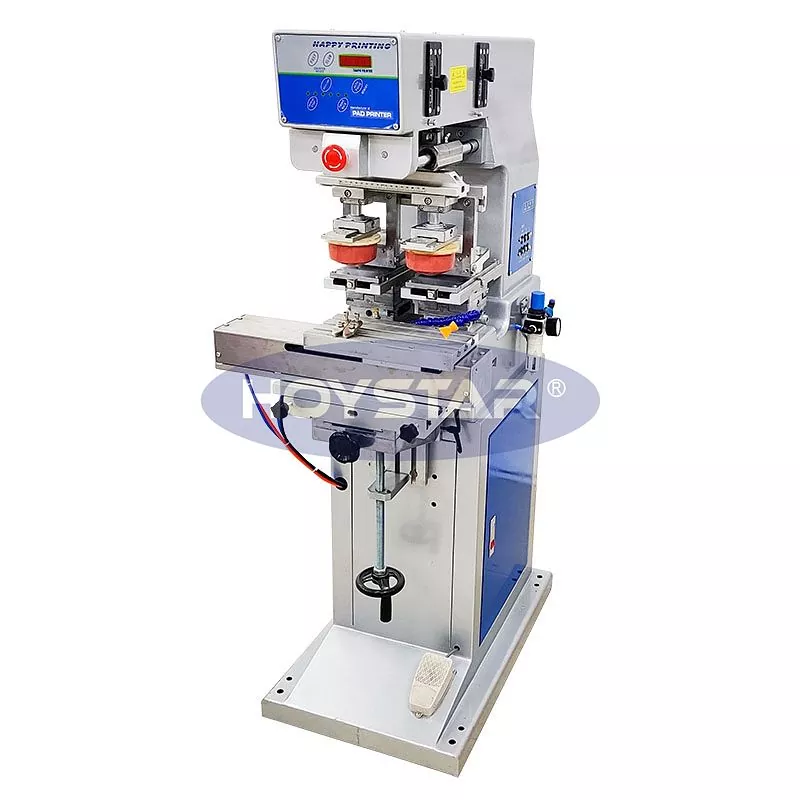

A Two Color Pad Printer With Shuttle Worktable is an automated pad printing machine that uses two separate ink cups or plates to print two different colors onto a product. The shuttle worktable moves horizontally between stations, allowing simultaneous loading/unloading and printing operations.
Manufacturers such as HOYSTAR integrate advanced pneumatic and servo systems to ensure stability, repeatability, and long-term reliability.
The shuttle worktable operates on a linear motion system. While one fixture is positioned under the printing pads, the other fixture is accessible to the operator or automation system for loading and unloading.
This overlapping workflow eliminates idle time and maximizes machine utilization.
The biggest advantage of a Two Color Pad Printer With Shuttle Worktable lies in its ability to dramatically improve production efficiency.
While one part is being printed, another is being prepared. This parallel processing reduces downtime between cycles.
Compared to single-table or manual systems, shuttle worktables can increase output by 30–60%, depending on product complexity.
Precision linear guides and adjustable fixtures ensure perfect alignment between colors, minimizing scrap and rework.
One operator can manage multiple machines or tasks, reducing overall labor expenses.
| Component | Function |
|---|---|
| Silicone Printing Pads | Transfer ink from plate to product surface |
| Ink Cup System | Ensures clean, sealed ink delivery |
| Shuttle Worktable | Moves fixtures between stations |
| Pneumatic / Servo Drive | Controls motion accuracy |
| PLC Control Panel | Manages printing parameters |
Two color pad printers with shuttle worktables are widely used across industries:
Their flexibility allows printing on plastic, metal, glass, ceramic, and coated surfaces.
| Feature | Shuttle Worktable | Rotary Table |
|---|---|---|
| Setup Cost | Lower | Higher |
| Flexibility | High | Medium |
| Maintenance | Simple | More complex |
| Best For | Medium to high-volume runs | Very high-volume automation |
When selecting a Two Color Pad Printer With Shuttle Worktable, consider:
Reputable manufacturers like HOYSTAR offer customization options to match specific production needs.
Proper maintenance ensures long-term stability and consistent print quality.
Yes, the shuttle system ensures precise registration, even for fine details and tight tolerances.
No. With PLC control and preset programs, basic training is sufficient.
Plastic, metal, glass, ceramic, rubber, and coated surfaces.
Typically 30–60 minutes, depending on fixture complexity.
Yes, it can be integrated with robots, conveyors, and vision systems.
A Two Color Pad Printer With Shuttle Worktable is an ideal solution for manufacturers seeking higher efficiency, consistent quality, and scalable production. By reducing idle time, improving accuracy, and lowering labor costs, this machine delivers measurable ROI across multiple industries.
If you are looking for a reliable, customizable, and production-proven pad printing solution, HOYSTAR offers professional equipment and technical support tailored to your needs.
To learn more about how a two color pad printer with shuttle worktable can transform your production line, contact us today for expert consultation and customized solutions.
