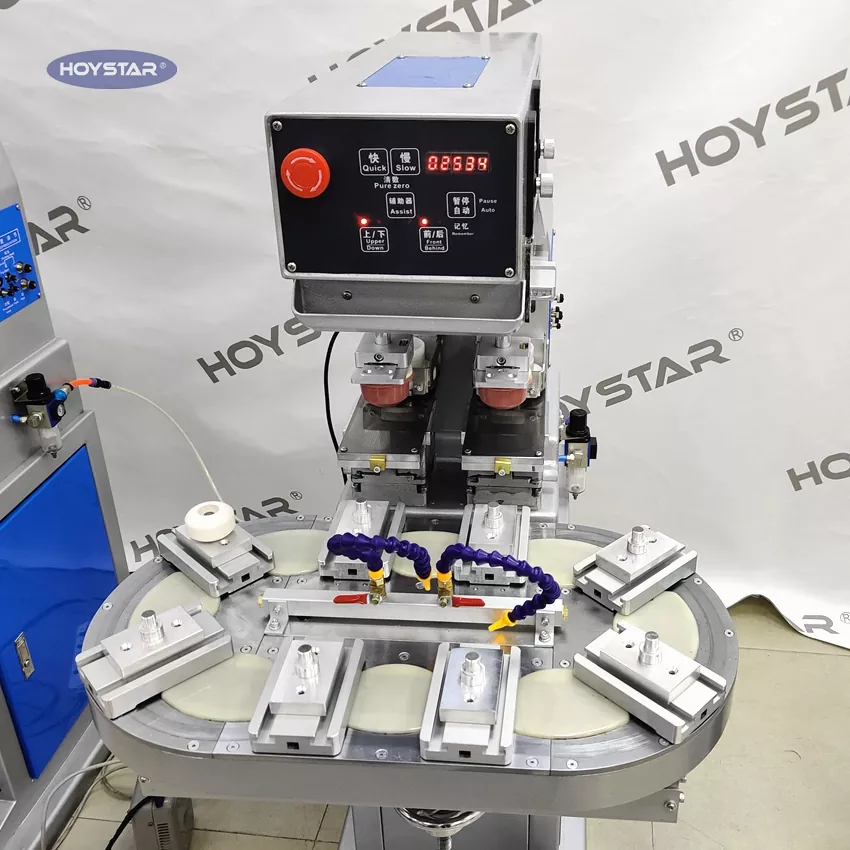

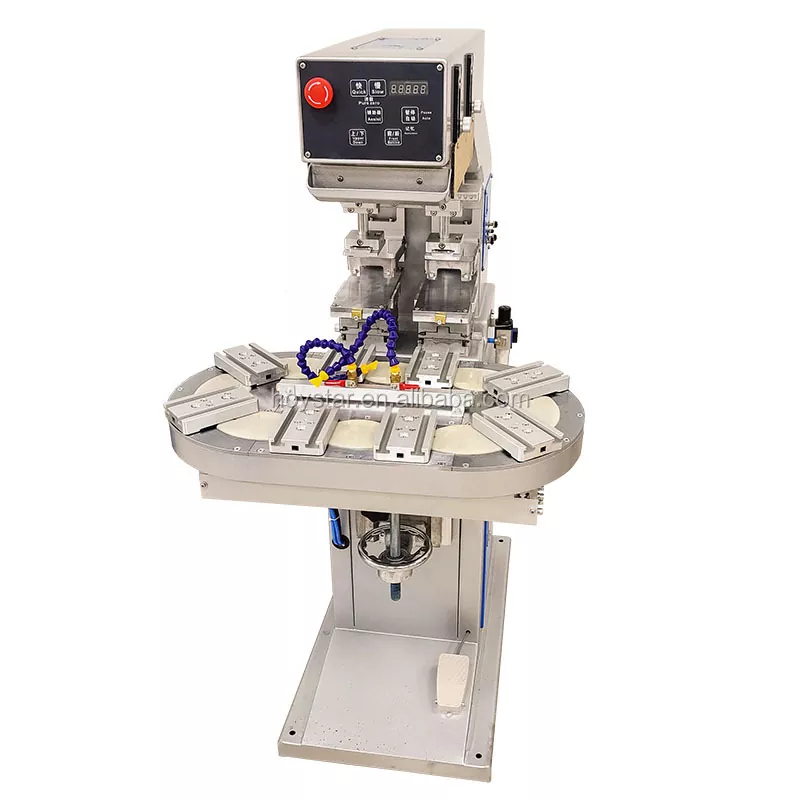

Two Color Rotary Table Pad Printing Machine

HOYSTAR is a reliable manufacturer and supplier in China; HOYSTAR Two Color Rotary Table Pad Printing Machine is a high-capability and cost-effective printing equipment. The machine offer convenient adjustment, stable operation and good printing effect. The machine delivers steady printing quality and suitable for printing a wide range of items such as electronic products, plastic shells, hardware products, stationery, small arts and crafts, as well as the small logos on the surface of gifts and more. Can meet diverse two color printing requirements of customers.

Product Parameter (Specification)

Product Feature And Application

For feature:

1. The Two Color Rotary Table Pad Printing Machine with SMC IC programs the action sequence, providing a variety of printing mode options for flexible operation.

2. A built-in 4-digit automatic counter records and displays the total number of prints for easy counting.

3. The machine frame is made of zinc alloy with a metal-coated surface for improved durability and corrosion resistance.

4. Both the worktable and silicon pad allow adjustment in the X, Y, and Z directions to accommodate different printing positions.

5. The ink suction pressure and the printing pad pressure can be adjusted independently, allowing precise control over the printing process.

6. The ink scraping distance is adjustable to match different ink layer thickness requirements.

7. It is equipped with an automatic front-and-back sliding ink leveling function, which effectively prevents partial solidification of the printing ink.

8. Each cylinder is fitted with an independent speed regulator, enabling separate adjustment of the operating speed for all cylinders.

9. The machine adopts original Japanese SMC and Taiwanese MINDMAN pneumatic components to ensure stable and reliable performance.

10. All adjustable positions include scale indicators for accurate and repeatable settings.

11. A safety feature prevents the printing head from lowering when compressed air is not supplied.

12. The machine operates at high speed while maintaining stable performance and low noise during operation.

Production Details

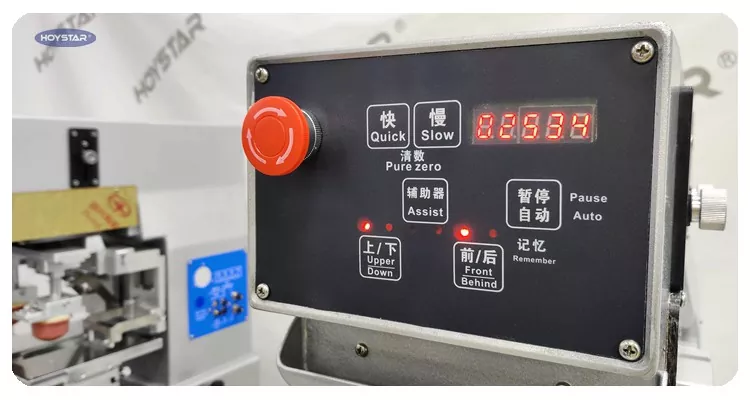

The Two Color Rotary Table Pad Printing Machine with SCM (Single-Chip Microcomputer) IC programs the action sequence. With both semi-automatic and automatic modes, operators can adapt to different production needs.

The ink suction pressure and the printing pad pressure can be adjusted independently, can change steel plate for print different pattern or logo

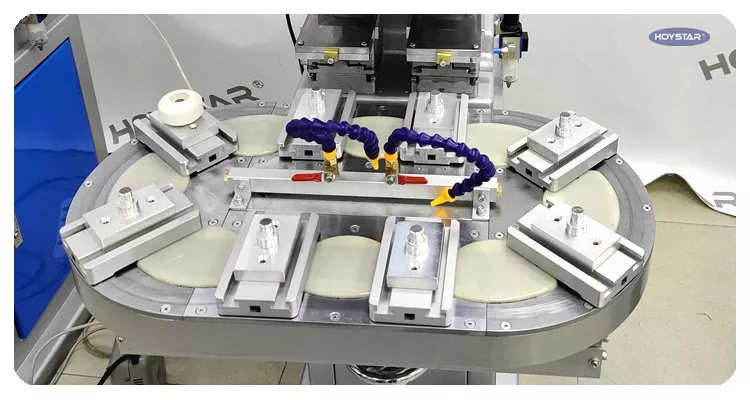

Equipped with rotary table, convenient for loading and unloading product and has a high printing efficiency

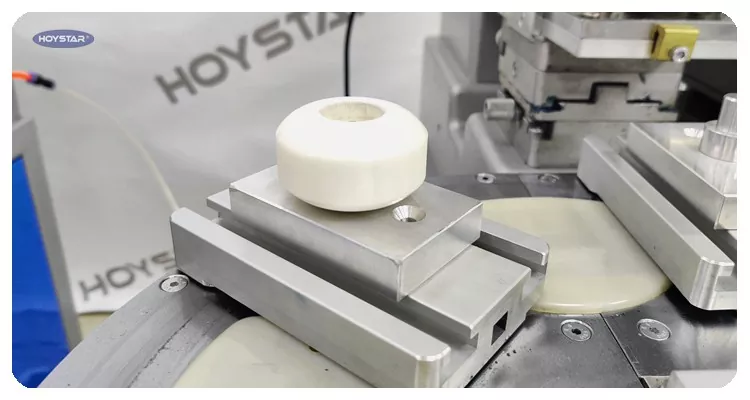

The machine worktable can be installed and replaced with different fixtures for printing products of different types and sizes
