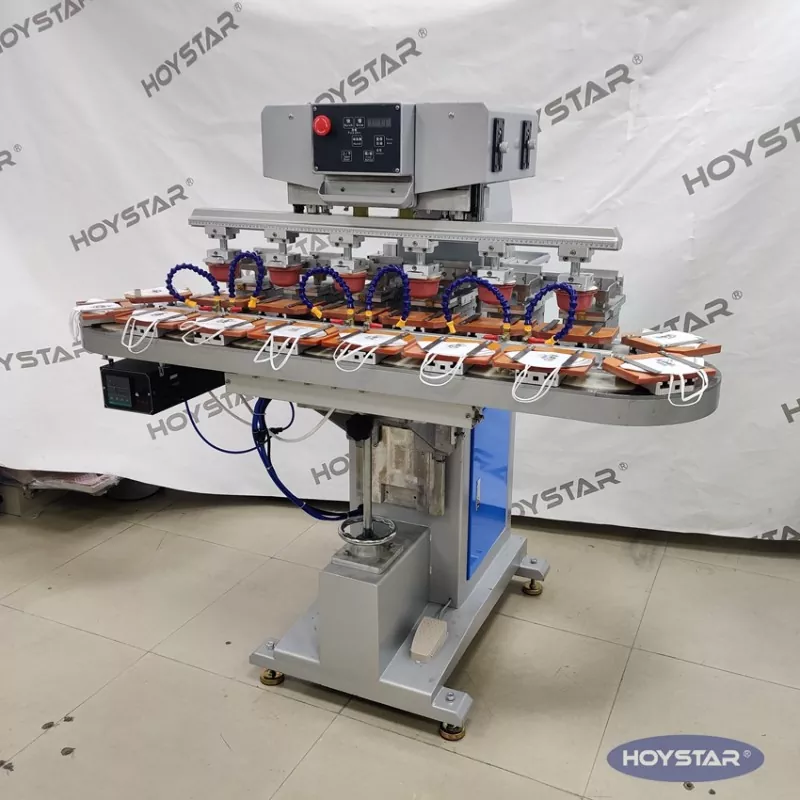

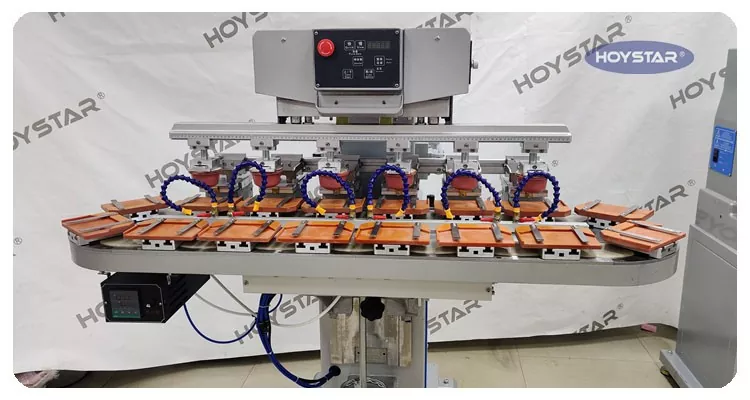

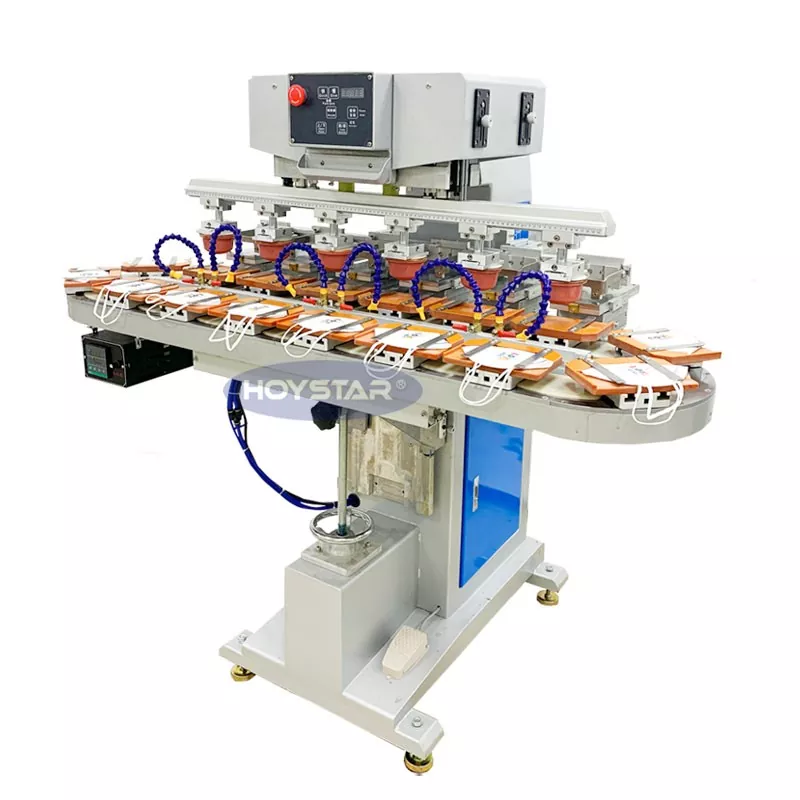

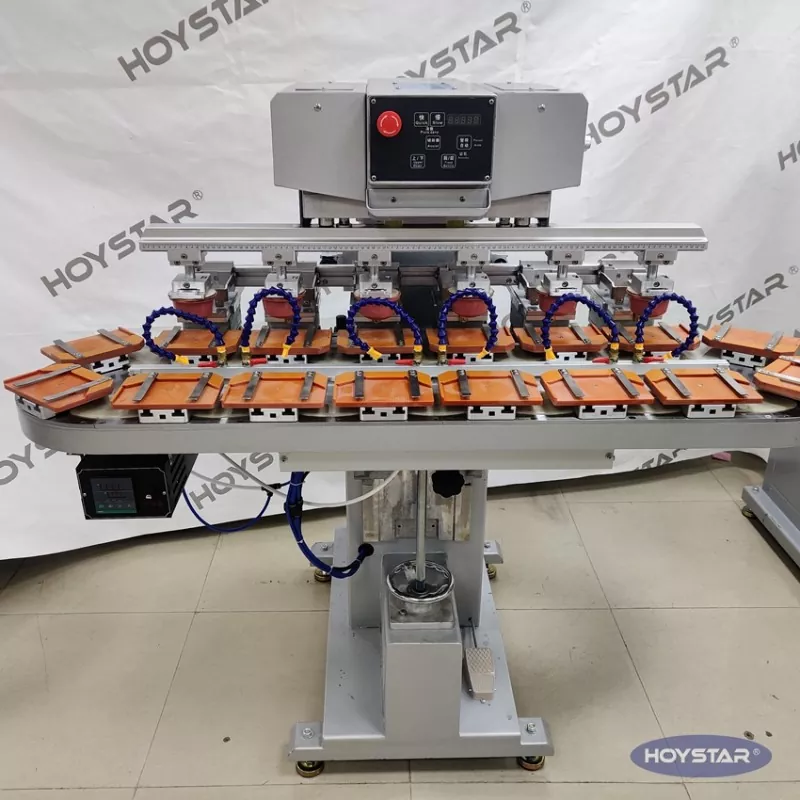

Six Color Pad Printer With Conveyor Worktable

As a professional China Six Color Pad Printer With Conveyor Worktable manufacturer and supplier, we provide customers with comprehensive project management services. This HOYSTAR Six Color Pad Printer With Conveyor Worktable is a high-capability and cost-effective printing equipment. The machine offer convenient adjustment, stable operation and good printing effect. The machine suitable for printing a wide range of industries and applications, it is perfectly suited for printing on electronic products, plastic housings, hardware components, stationery, small arts & crafts, as well as logos and graphics on gifts, toys, and promotional items.

Product Parameter (Specification)

Product Feature And Application

For feature:

1. Features an SCM IC for programming operational sequences, along with multiple printing mode options to adapt to diverse production requirements

2. Built-in automatic 4-digit counter that accurately tracks and statistics printing quantities in real time

3. Machine frame constructed from die-cast alloy, with a metal-coated surface for enhanced durability and resistance to wear and corrosion

4. Worktable, printing head, and ink tray are adjustable in the X, Y, and Z directions, ensuring precise alignment for various workpiece sizes and shapes

5. Ink suction intensity and printing pad pressure can be adjusted independently, allowing optimal print quality control for different materials

6. Scraper stroke is fully adjustable to match the dimensions of printing plates and specific ink application needs

7. Equipped with an automatic front-and-back sliding ink leveling function, which prevents partial solidification of printing ink and maintains consistent ink fluidity

8. Each cylinder is fitted with an independent speed regulator, enabling fine-tuning of individual component operation speeds

9. Six Color Pad Printer With Conveyor Worktable Adopts original pneumatic components from Japan’s SMC and Taiwan’s MINDMAN, ensuring reliable performance and long service life

10. Every adjustable position is marked with a clear scale, facilitating precise and repeatable adjustments

11. Features a unique machine body support design that simplifies machine calibration and enables quick replacement of steel plates

12. Incorporates a safety function to prevent the printing pad from dropping when there is no air pressure supply

13. Operates at high speed while maintaining stable performance and low noise levels

Production Details

The Six Color Pad Printer With Conveyor Worktable with SCM (Single-Chip Microcomputer) IC programs the action sequence. With both semi-automatic and automatic modes, operators can adapt to different production needs.

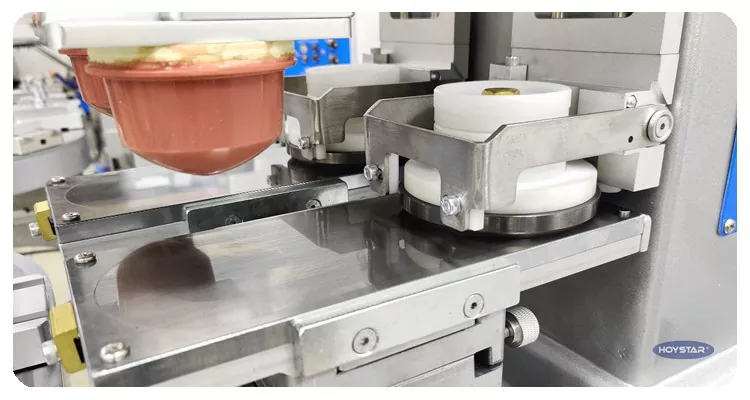

The ink suction pressure and the printing pad pressure can be adjusted independently, can change steel plate for print different pattern or logo

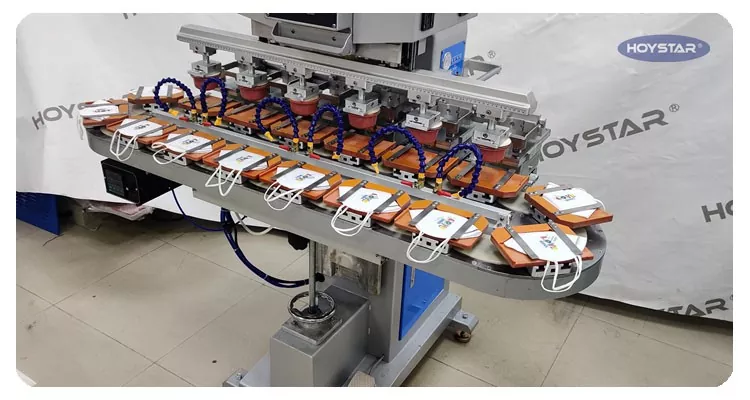

Equipped with rotary table, convenient for loading and unloading product and has a high printing efficiency

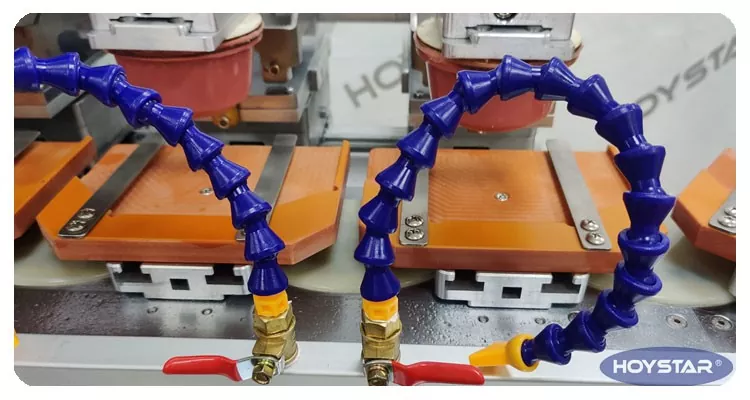

The machine worktable can be installed and replaced with different fixtures for printing products of different types and sizes
