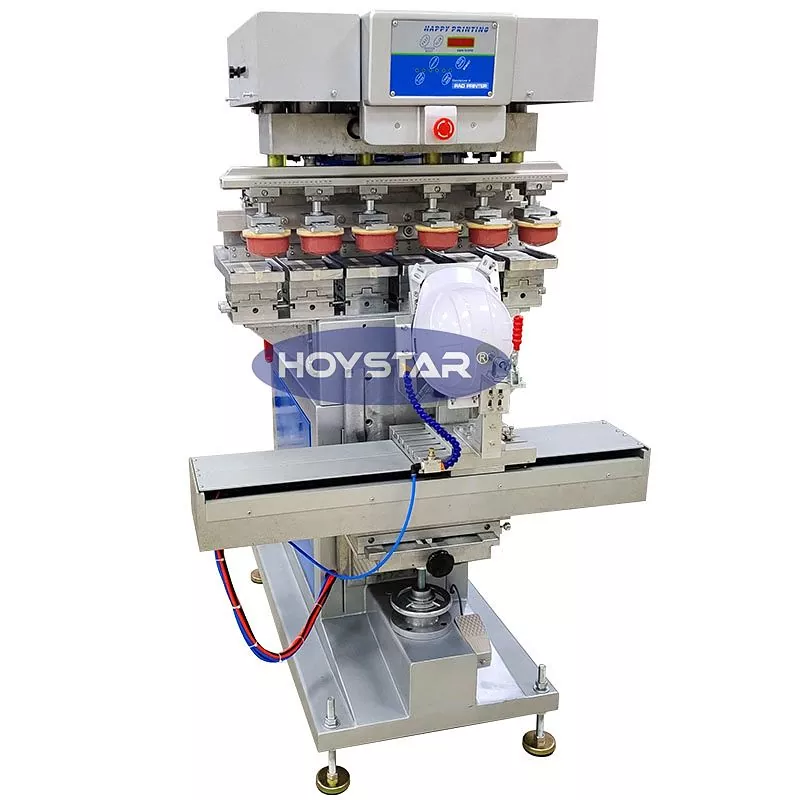

6 Color Pad Printer With Shuttle Worktable

As the professional manufacturer and supplier, HOYSTAR 6 Color Pad Printer With Shuttle Worktable is a high-capability and cost-effective printing equipment. The machine offer convenient  adjustment, stable operation and good printing effect. The machine delivers steady printing quality and suitable for printing a wide range of items such as electronic products, plastic shells, hardware products, stationery, small arts and crafts, as well as the small logos on the surface of gifts and more. Can meet diverse printing requirement of customer.

Product Parameter (Specification)

Product Feature And Application

For feature:

1.  Features an SCM IC with programmable action and multiple printing modes.

2.  Built-in 4-digit automatic counter with print quantity statistics.

3.  Constructed with a coin alloy frame and metal-coated surface.

4.  Worktable, print head, and ink tray are adjustable in the X, Y, and Z directions.

5.  Independent adjustment of ink suction and pad printing pressure.

6.  Adjustable scraper stroke.

7.  Automatic front/back ink leveling function prevents localized ink drying.

8.  Each cylinder is equipped with an independent speed regulator.

9.  Uses genuine SMC (Japan) and MINDMAN (Taiwan) pneumatic components.

10. All adjustable positions feature scale markings.

11. Dual air cylinders provide balanced and sufficient pressure on the print head.

12. Unique lift-up body design facilitates machine adjustment and plate change.

13. Safety mechanism prevents pad drop during air pressure loss.

14. High-speed operation with stability and low noise.

15. Integrated cooling system.

16. With the shuttle table stopped, the machine operates as a dual-head, single-color pad printer.

Production Details

The 6 Color Pad Printer With Shuttle Worktable with SCM (Single-Chip Microcomputer) IC programs the action sequence. With both semi-automatic and automatic modes, operators can adapt to different production needs.

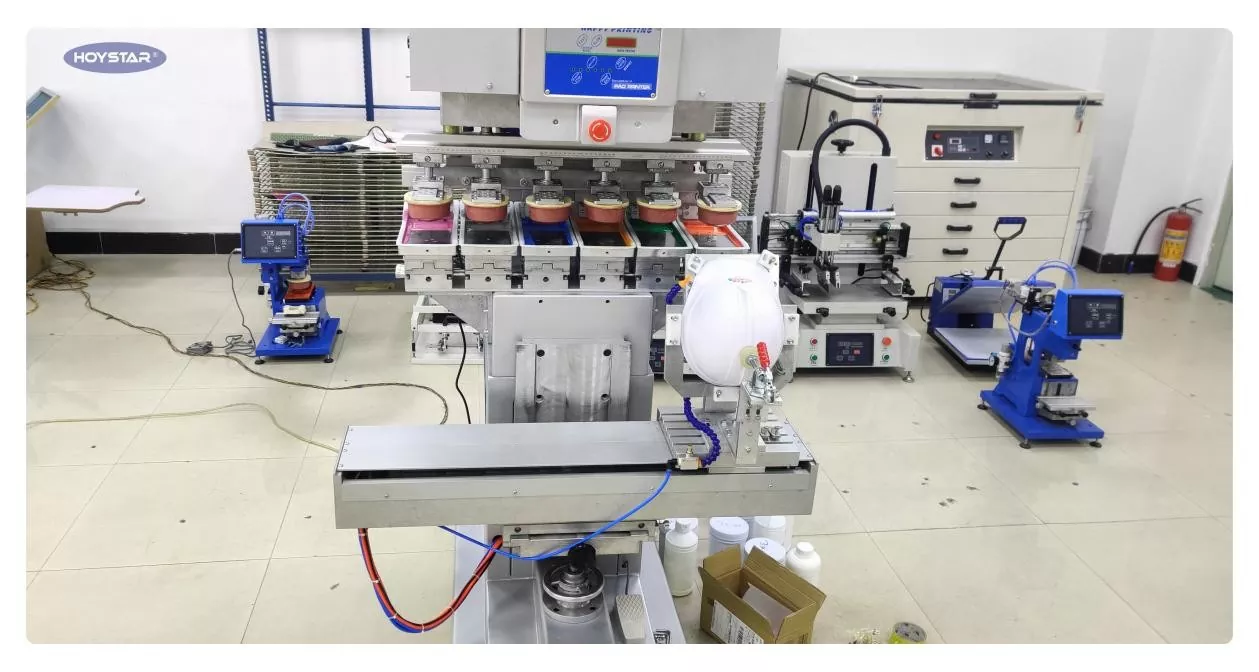

With stopping shuttle worktable and 6 workstation

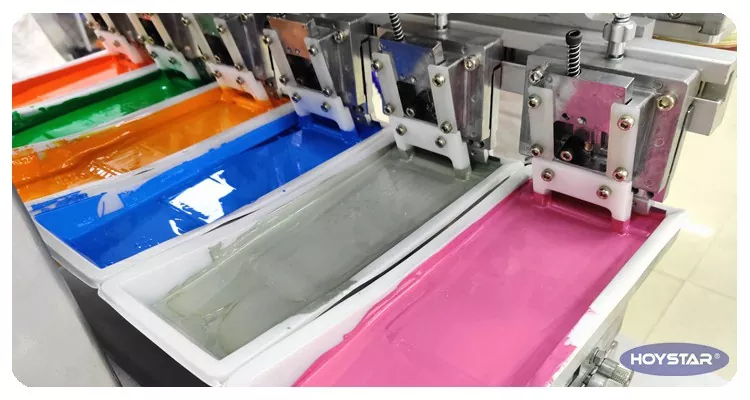

Open ink well
