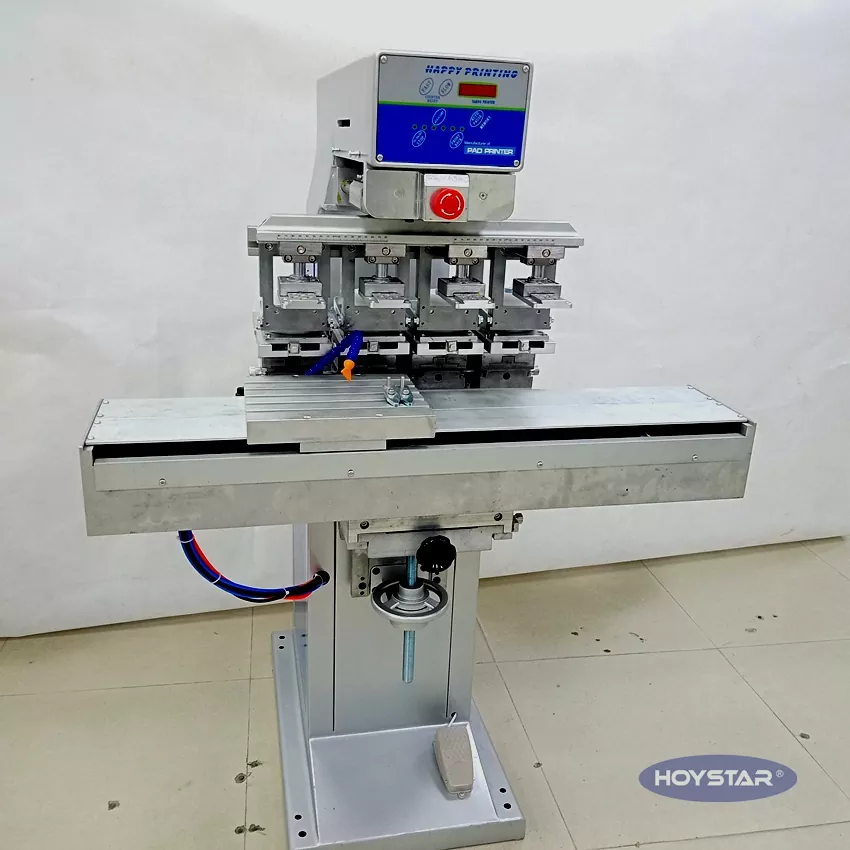

4 Color Pad Printer With Shuttle Worktable for Cover

This HOYSTAR 4 Color Pad Printer With Shuttle Worktable for Cover is a high-capability and cost-effective printing equipment. The machine offer convenient  adjustment, stable operation and good printing effect. The machine delivers steady printing quality and suitable for printing a wide range of items such as electronic products, plastic shells, hardware products, stationery, small arts and crafts, as well as the small logos on the surface of gifts and more. Can meet diverse printing requirement of customer.

Product Parameter (Specification)

Product Feature And Application

For feature:

The SCM (Single-Chip Microcomputer) IC programs the action sequence, providing a variety of printing mode options.

A built-in 4-digit automatic counter records and displays the total number of prints for easy counting.

The machine frame is made of zinc alloy with a metal-coated surface for improved durability and corrosion resistance.

Both the worktable and silicon pad allow adjustment in the X, Y, and Z directions to accommodate different printing positions.

Ink suction pressure and pad printing pressure can be adjusted separately for precise control.

The scraper stroke is adjustable to adapt to different ink layer thickness needs.

It is equipped with an automatic front-and-back sliding ink leveling function, which prevents partial solidification of the printing ink.

Each cylinder is equipped with an independent speed regulator, allowing separate adjustment of the operating speed for all cylinders.

It adopts original Japanese SMC and Taiwanese MINDMAN pneumatic components to ensure stable and reliable performance.

Quick-read scales on all adjustments enable fast, accurate setup.

Safety lock prevents pad drop during air pressure loss.

The machine operates at a fast speed, while maintaining stable performance and low noise during operation.

The 4 Color Pad Printing Machine with stopping shuttle worktable and 4 printing head, the machine can be used as a 1 color pad printer with four heads.

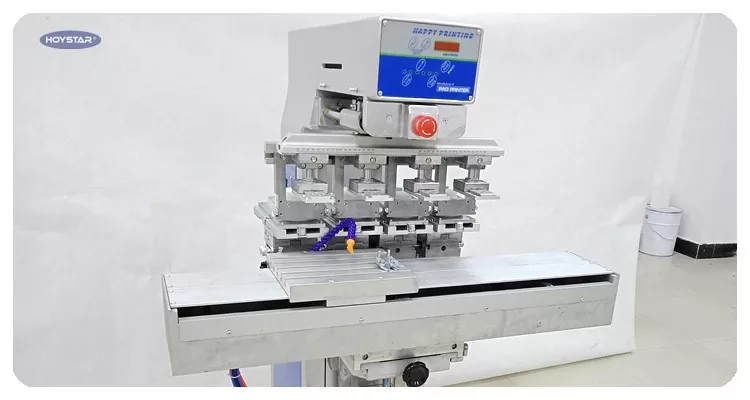

Production Details

The 4 Color Pad Printer With Shuttle Worktable for Cover (Single-Chip Microcomputer) IC programs the action sequence. With both semi-automatic and automatic modes, operators can adapt to different production needs.

Every adjustable position is marked with scale indicators for accurate and convenient adjustment.

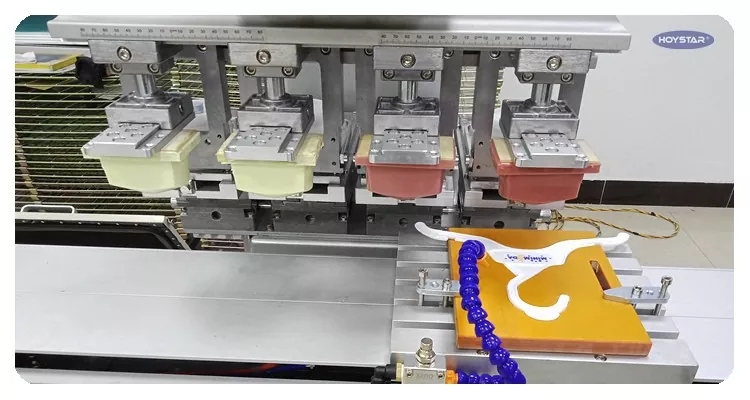

With stopping shuttle worktable, the machine can be used as a 1 color pad printer with four heads.

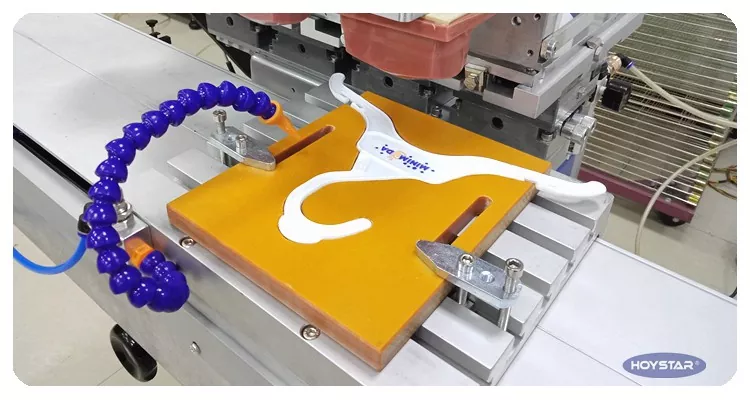

The machine worktable can be installed and replaced with different fixtures for printing products of different types and sizes
