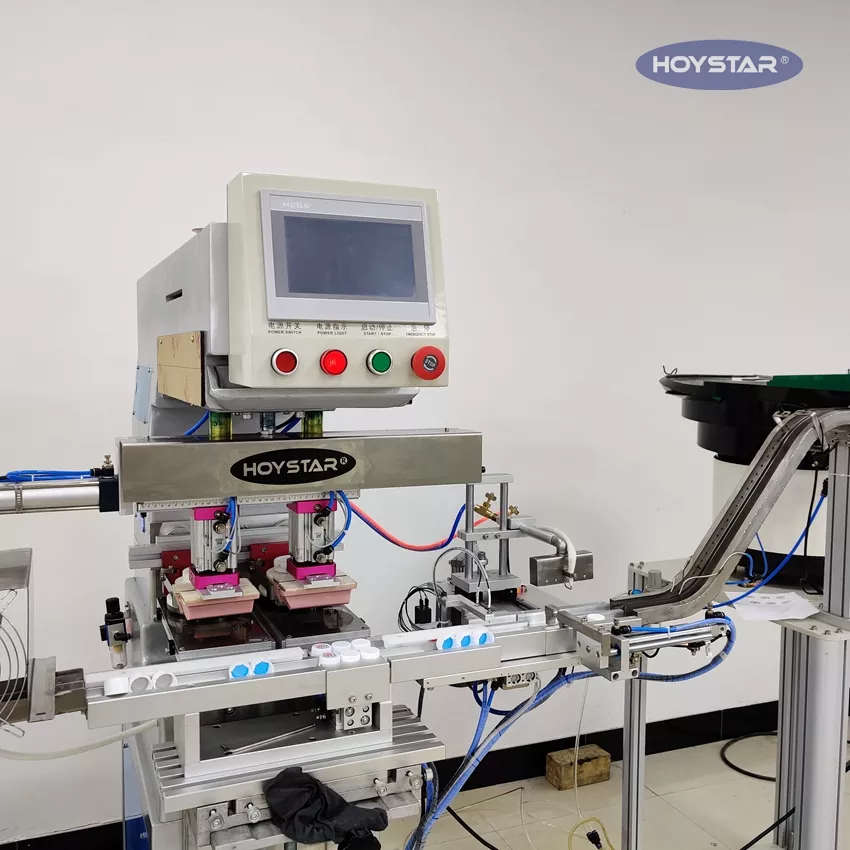

Automatic 2 Colors Bottle Caps Pad Printing Machine

HOYSTAR is a famous Automatic 2 Colors Bottle Caps Pad Printing Machine manufacturer and supplier in China. If you want to buy high-quality and the newest products, please contact us immediately. This HOYSTAR Automatic 2 Colors Bottle Caps Pad Printing Machine is a high-capability and practical printing equipment, specially designed for printing on bottle caps. The machine adopts fully automatic design, equipped with automatic feeding, automatic flame treatment, automatic printing, automatic drying and automatic unloading to realize stable production and save manpower. It's suitable for bottle cap printing needs in industries such as beverage, cosmetics, daily chemicals and more. Can meet the specialized printing requirements of customers for bottle cap products.

Product Parameter (Specification)

Product Feature And Application

For feature:

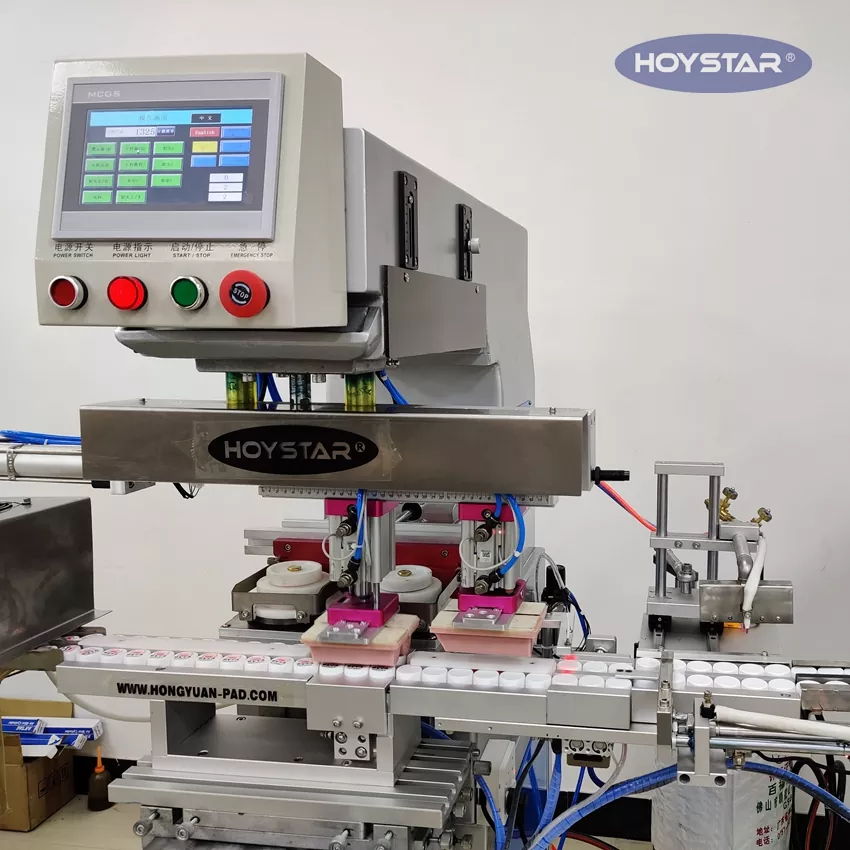

1. The Automatic 2 Colors Bottle Caps Pad Printing machine adopts PLC + Touch Screen control, enabling intuitive and precise operation for users.

2. A built-in 5-digit automatic counter records and displays the total number of prints for easy counting.

3. The machine frame is made of zinc alloy with a metal-coated surface for improved durability and corrosion resistance.

4. Both the worktable and silicon pad allow adjustment in the X, Y, and Z directions to accommodate different printing positions.

5. The ink suction pressure and the printing pad pressure can be adjusted independently, ensuring optimal printing results for bottle caps.

6. The ink scratching distance is adjustable to match different ink layer thickness requirements for bottle cap surfaces.

7. It is equipped with an automatic front-and-back sliding ink leveling function, which effectively prevents partial solidification of the printing ink.

8. Each cylinder is fitted with an independent speed regulator, allowing separate adjustment of the operating speed for all cylinders.

9. Every adjustable position is marked with a scale indicator, facilitating accurate and efficient adjustment.

10. When no compressed air is supplied, it has a function to prevent the printing head from lowering, ensuring operational safety.

11. The machine operates at high speed while maintaining stable performance and low noise during operation.

12. An integrated automatic loading and unloading system enables full automation, save manpower.

13. Equipped with flame treatment system improves ink adhesion on bottle caps for enhanced print durability.

14. Equipped with drying system, ensuring fast and high-quality production

Production Details

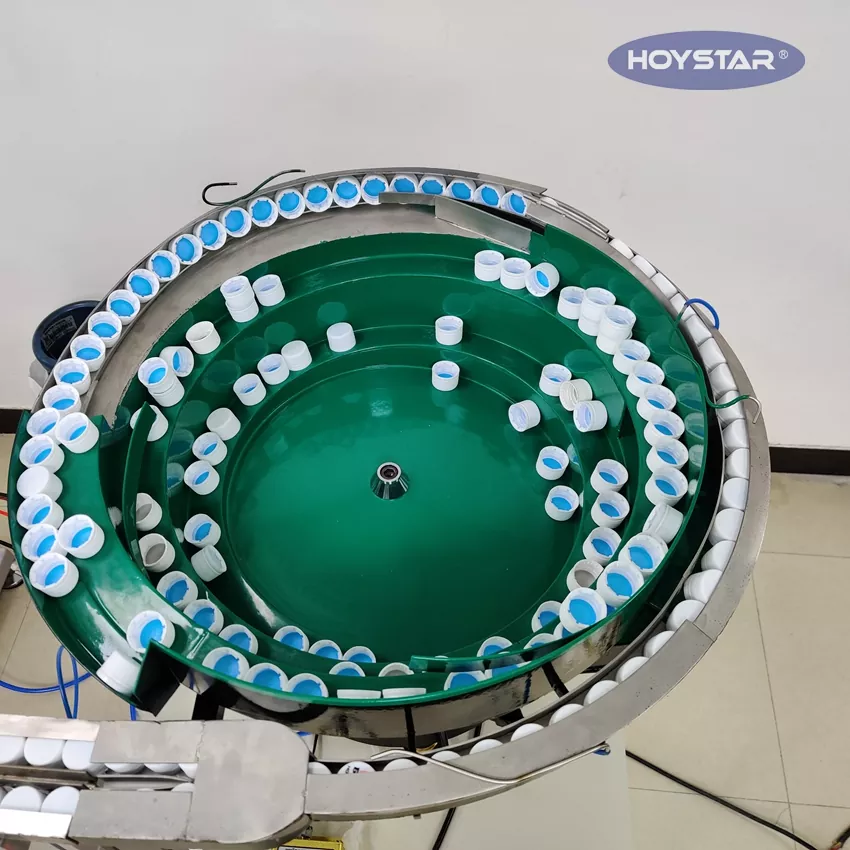

The Automatic 2 Colors Bottle Caps Pad Printing Machine equipped with Automatic vibration feeder can realize automatic loading without manual operation, saving manpower

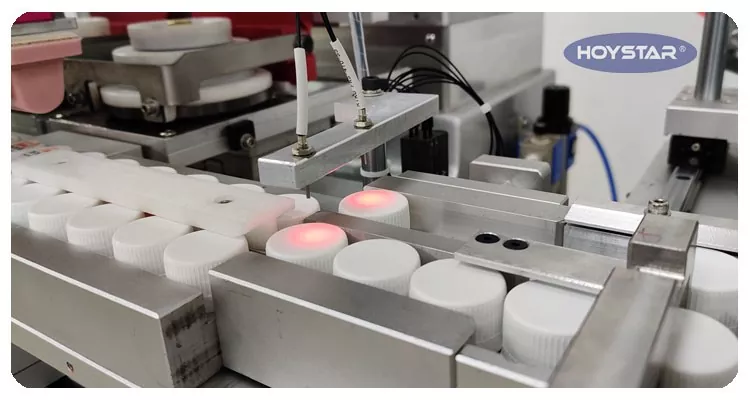

The machine is configured with a flame treatment system to enhance the adhesion of ink on bottle cap surfaces, improving printing durability.

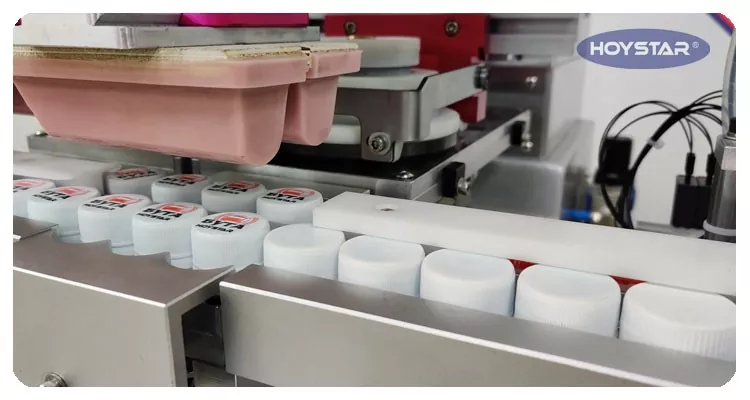

The fixture can be customized according to the customer's bottle size, and two bottle caps can be printed at a time
