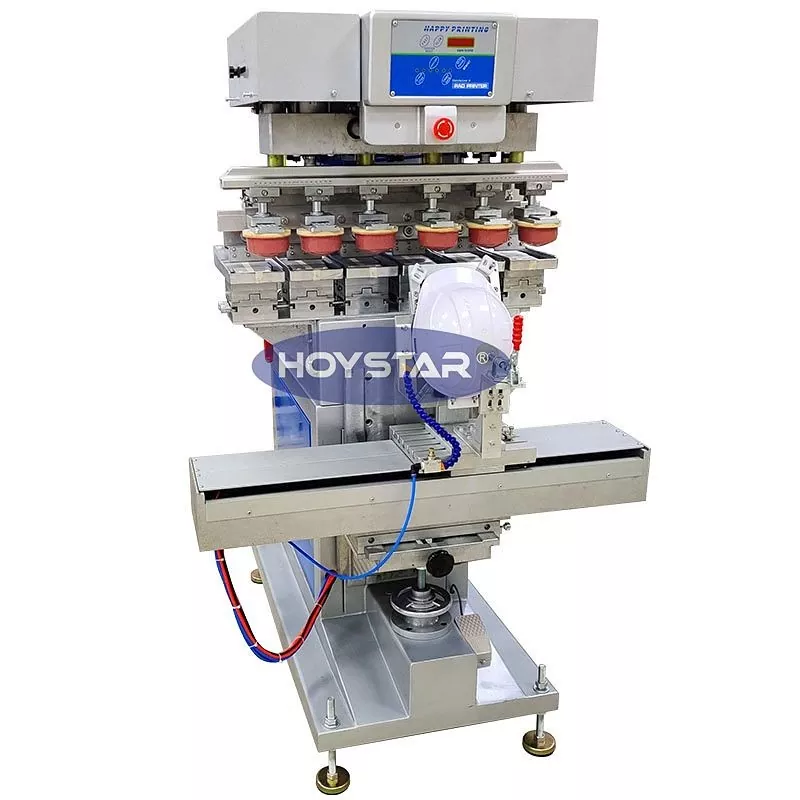

6 Color Safety Helmet Pad Printing Machine

As the professional China manufacturer and supplier, HOYSTAR 6 Color Safety Helmet Pad Printing Machine equipped with PLC touch screen control panel easy to operation. This machine engineered for printing on curved and irregular surfaces like helmets. This versatile machine is ideal for a range of industries including Safety and protective equipment, sports equipment, automotive parts, promotional items, electronic casings, and toys. And have adjustable table height to accommodate various product dimensions.

Product Parameter (Specification)

Product Feature And Application

For feature:

1. Equipped with an SCM IC for programming operational sequences, plus multiple printing mode options to suit diverse production needs

2. Built-in automatic 4-digit counter for accurate statistics and tracking of total printing quantities

3. Machine frame constructed from die-cast alloy with a metal-coated surface for enhanced durability and corrosion resistance

4. Worktable, printing head, and ink tray are adjustable in the X, Y, and Z directions to ensure precise alignment for different workpieces

5. Ink suction intensity and printing pad pressure can be adjusted independently for optimal print quality on various materials

6. Scraper stroke is fully adjustable to match the size of printing plates and ink requirements

7. Features an automatic front-and-back ink leveling function via sliding, which prevents partial solidification of printing ink and maintains ink consistency

8. Each cylinder is equipped with an independent speed regulator for fine-tuning of operational pace

9. 6 Color Safety Helmet Pad Printing Machine Adopts original pneumatic components from Japan’s SMC and Taiwan’s MINDMAN for reliable performance and long service life

10. Every adjustable position is marked with a scale for precise, repeatable adjustments

11. Unique machine body support design facilitates easy machine adjustment and quick steel plate replacement

12. Incorporates a safety function to prevent pad dropping when there is no air pressure supply

13. Operates at high speed while maintaining stability and low noise levels

Production Details

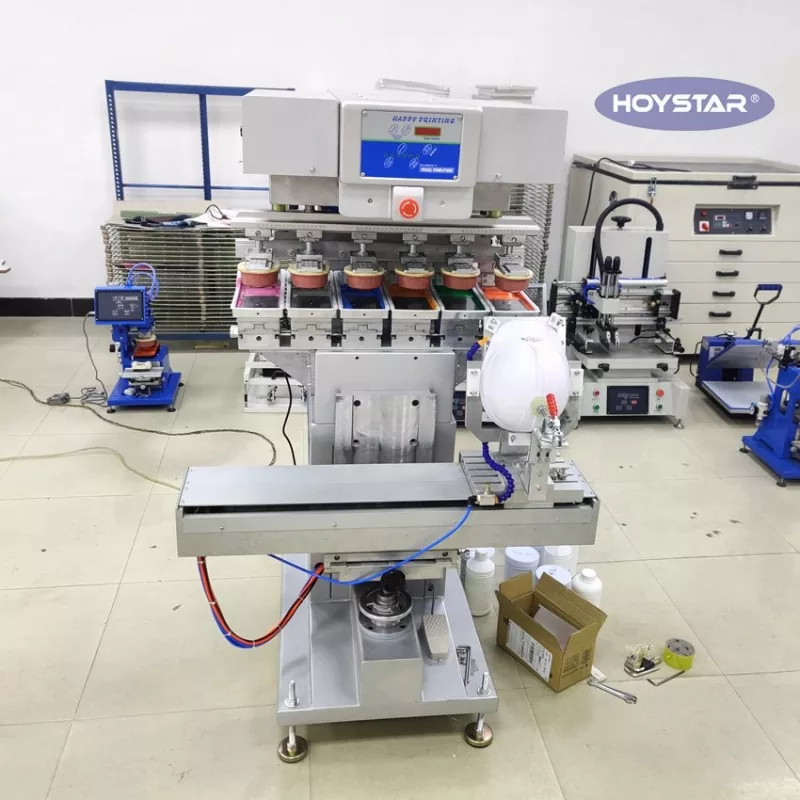

The 6 Color Safety Helmet Pad Printing Machine equipped with shuttle worktable, can print 6 color at once.

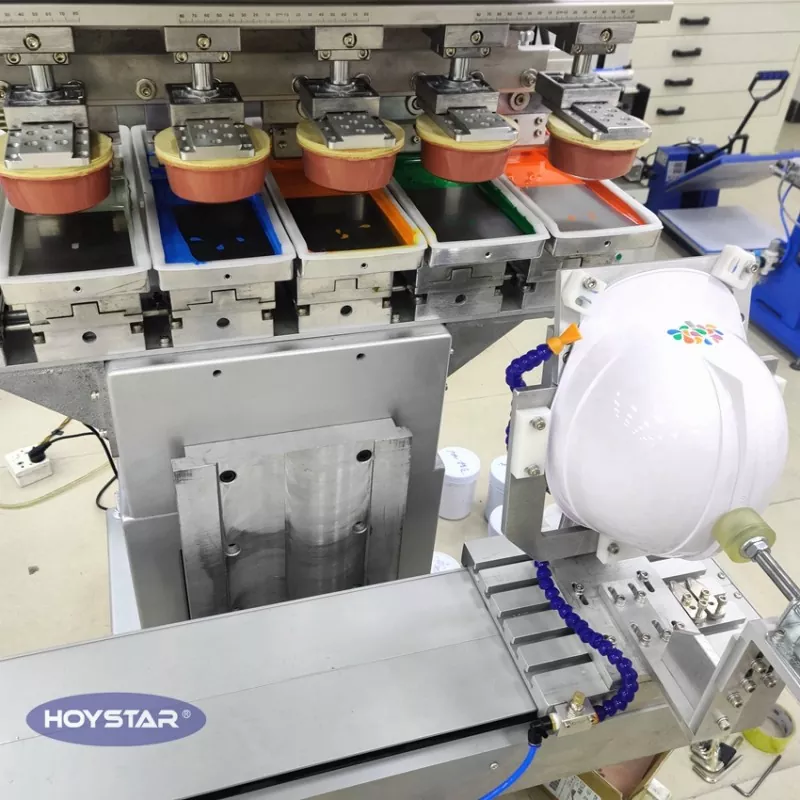

6 printing heads marked with a scale for precise, repeatable adjustments

Open ink tray

Printing sample
