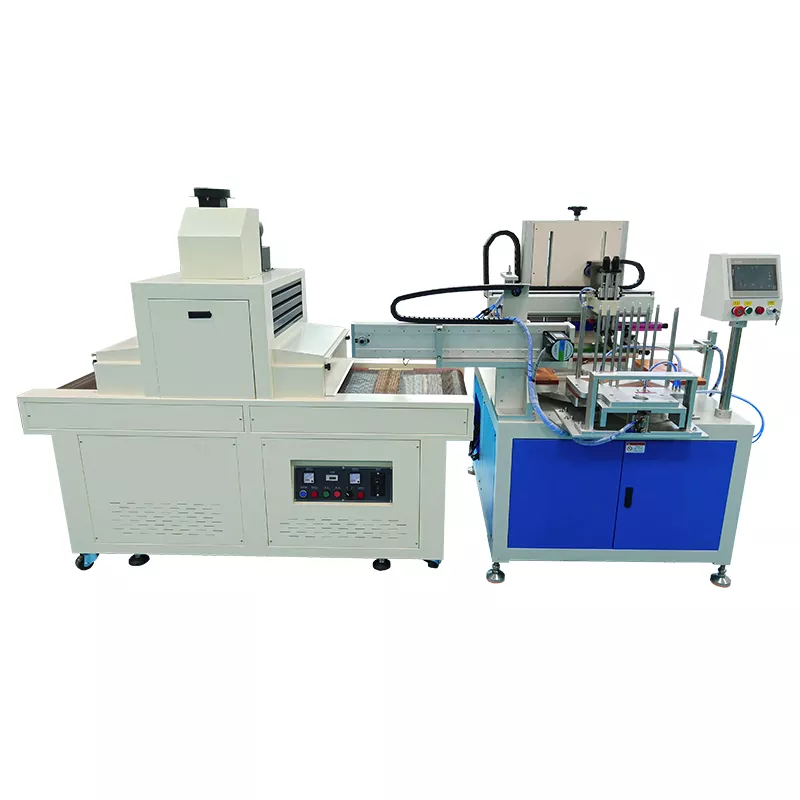

Automatic Screen Printing Machine For Rulers

As the professional manufacturer and supplier, HOYSTAR supplies Automatic Screen Printing Machine For Rulers Machine equipped with high speed rotary worktable, PLC touchscreen controls, automatic loading and unloading system, system, suitable for printing on various ruler

Product Parameter (Specification)

Product Feature And Application

For feature:

1. Machine fully automatically running without the need for manual intervention.

2. Automatic positioning to ensure printing accuracy

3. No product no printing — ensures stable printing performance

4. A strong vacuum system secures the substrate firmly for precise registration during printing.

5. Come with UV dryer or IR drying system

6. Control with PLC and touchscreen interface, offering a digital panel for flexible parameter adjustment and user-friendly operation with rich functionality.

7. Four-corner adjustable screen frame holder ensures balance between screen and worktable, guaranteeing uniform ink deposition

8. Easily configurable printing angle, pressure, and screen distance. Squeegee and flood bar are guided by precision linear mechanisms to maintain vertical accuracy and smooth operation

9. Has an emergency stop switch built in, so it’s safe and stable to use.

10. A multi-station high-precision rotary indexing system (Taiwan-made) enables fast, stable positioning and increases overall productivity.

Production Details

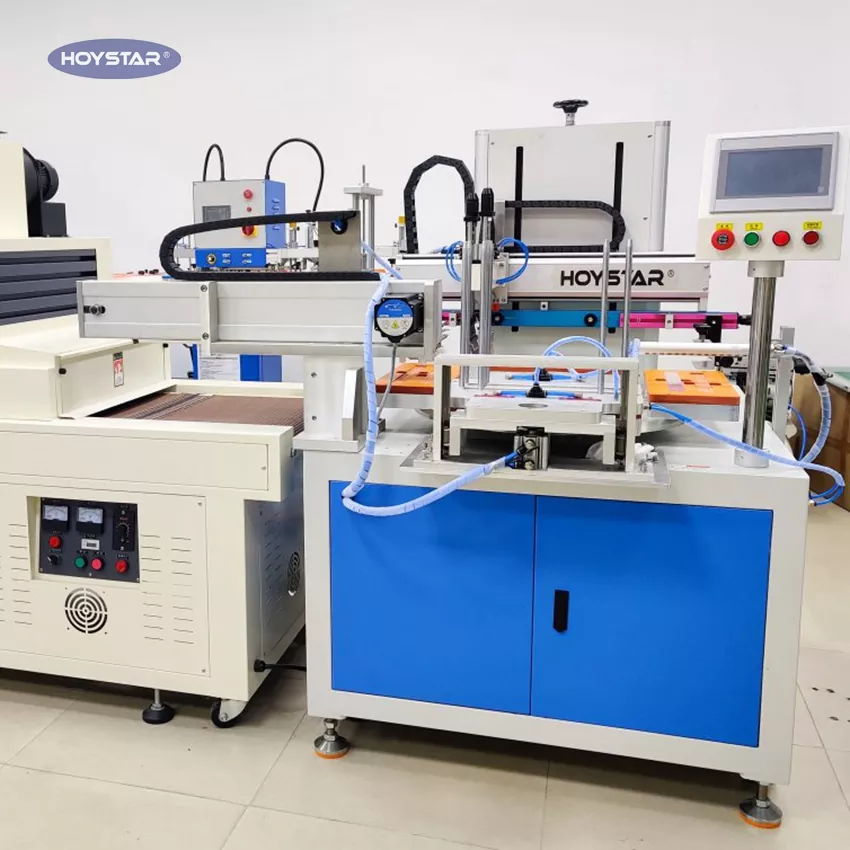

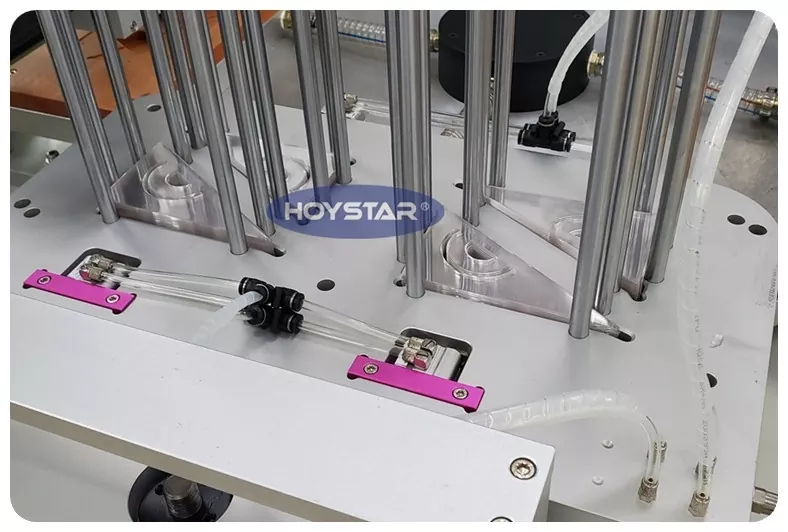

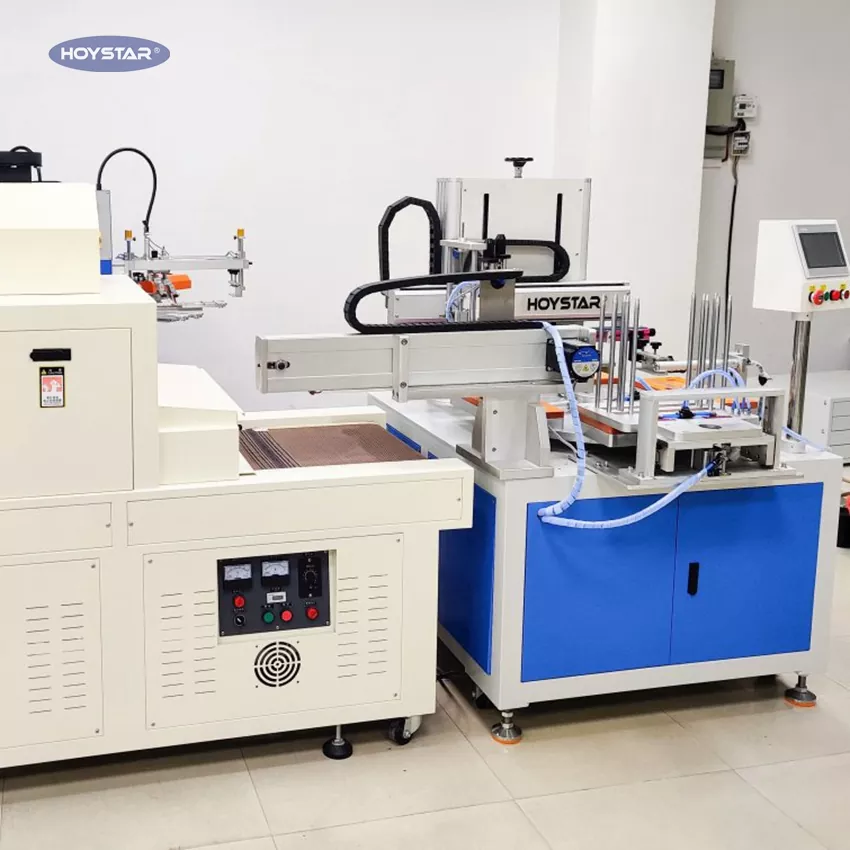

The Automatic Screen Printing Machine For Rulers with automatic loading system

Dust removal device

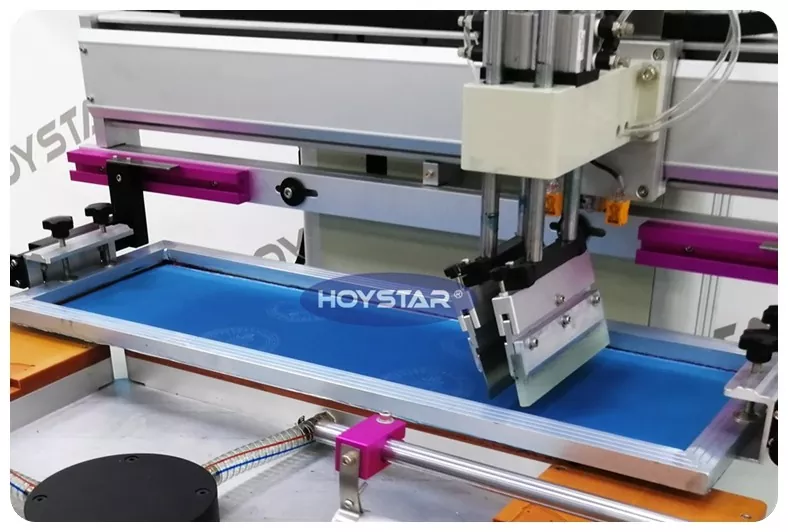

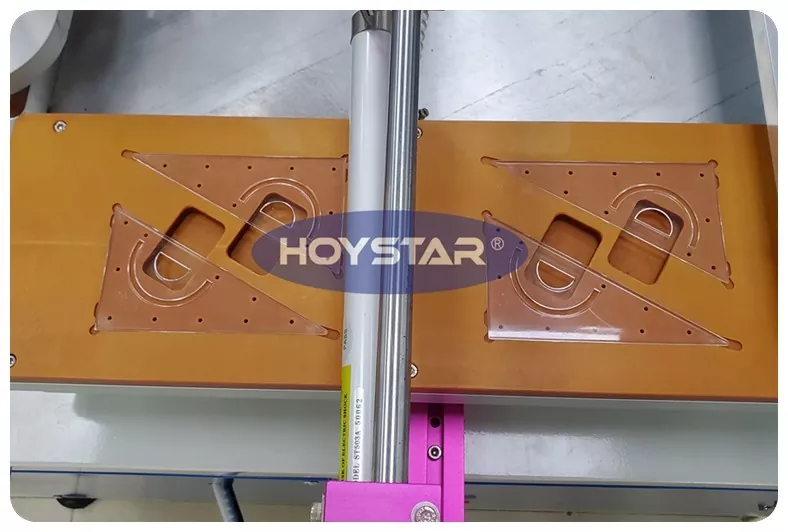

Printing workstation, can change screen frame for print different patter or logo on product

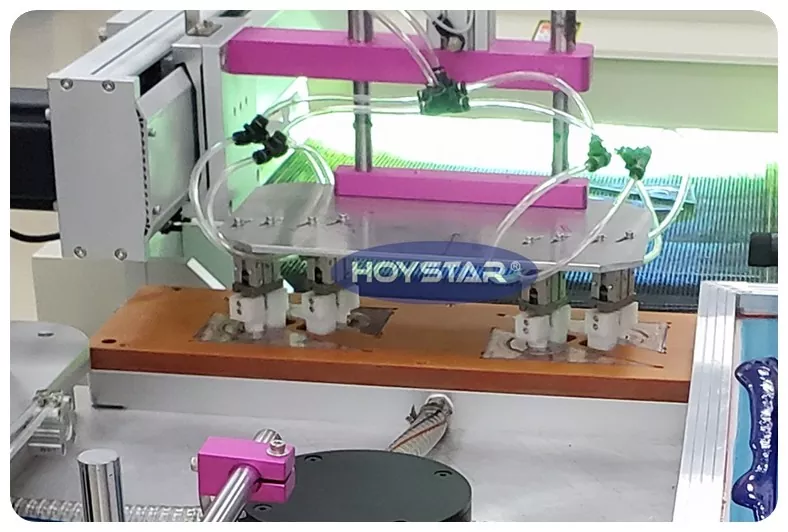

Automatic unloading

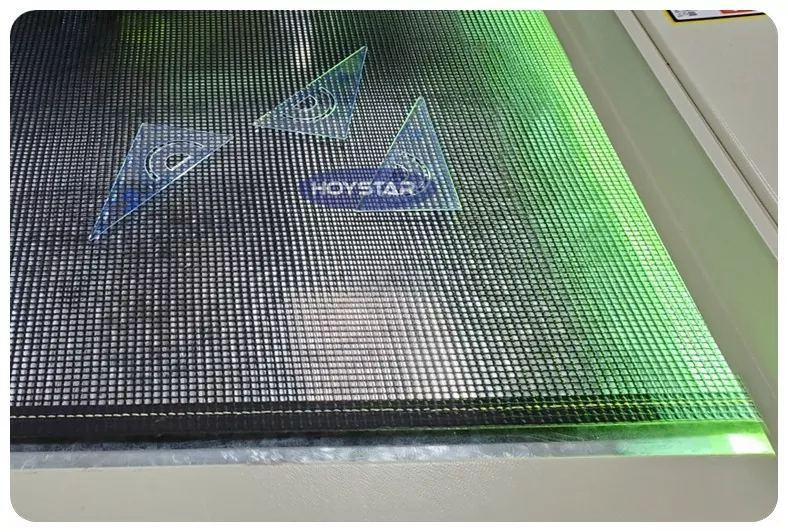

UV drying system

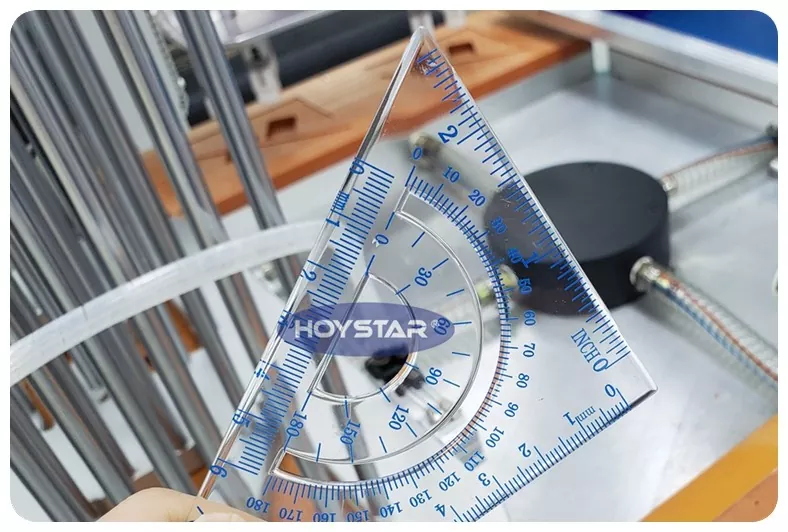

Printing sample
