HOYSTAR professionally produces high-quality Automatic Stationery Ruler Screen Printing Machine. Our factory also provides customized services and free samples for you. This HOYSTAR supplies Automatic Stationery Ruler Screen Printing Machine with high speed rotary worktable, PLC touchscreen controls, automatic loading and unloading system, system, suitable for printing on various ruler.
|
Wokrtables |
4 pcs |
|
Usage scope |
W40*L300mm |
|
Max printing speed |
2500-5000PCS/Hr |
|
Max Workpiece height |
within 300mm rulers |
|
Air pressure |
6-8par |
|
Machine size |
1350*1250*1650mm |
|
Max.printing speed |
1000times/hr |
|
Voltage |
220V |
For feature:
1. Rotary worktable with precision cam indexer structure
2. Fine-adjustable worktable, supporting micro-adjustment in X and Y directions

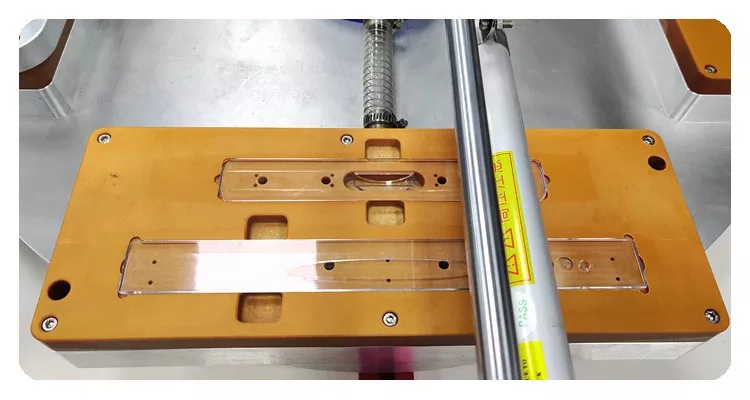

3. High-strength vacuum tube adsorption system with large holding capacity
4. Compatible with various workpiece specifications; no custom fixtures required, enabling quick changeovers
5. Intelligent "no-product, no-print" safety protection function
6. Fully automated workflow: Auto feeding → Auto printing → Auto unloading → Auto drying
7. The entire machine operates at high speed with smooth performance and low noise

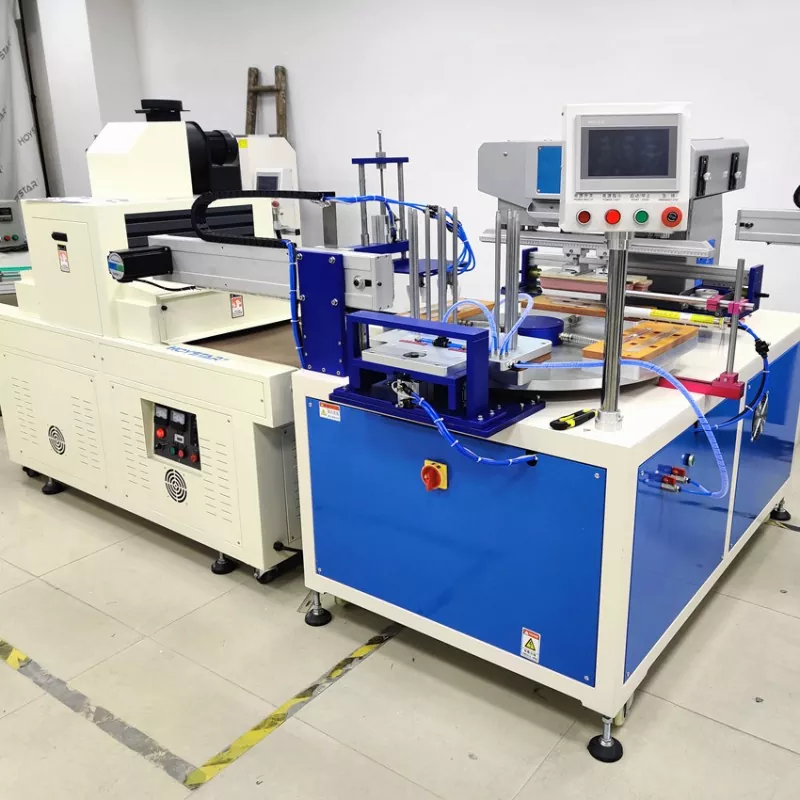

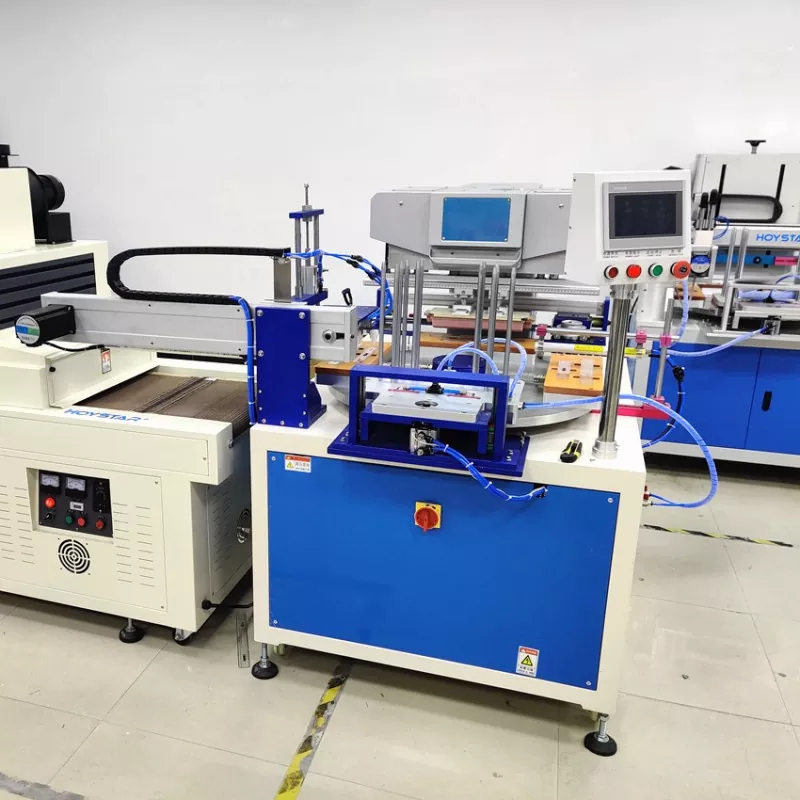

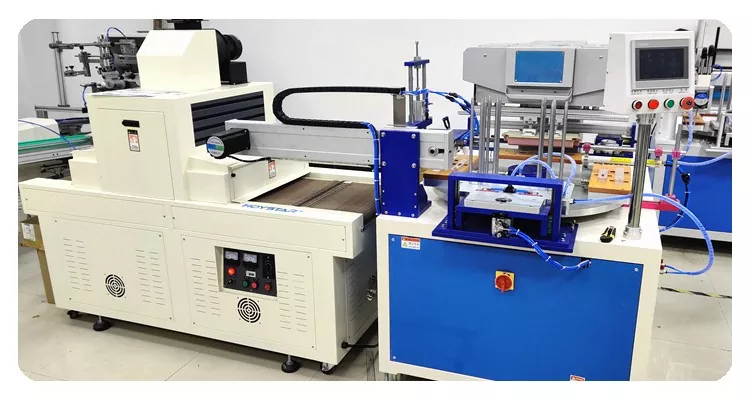

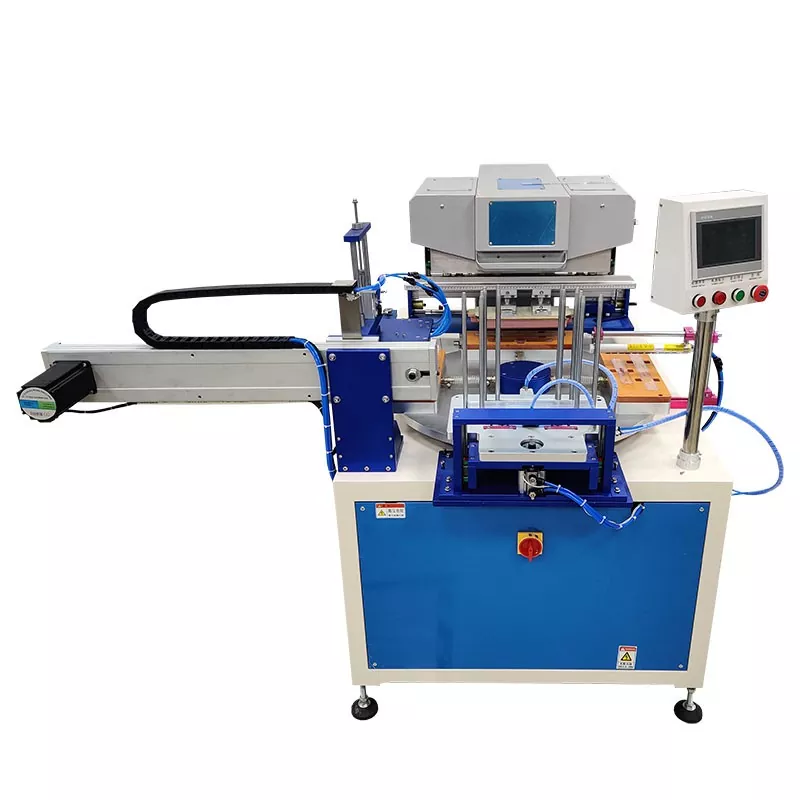

The Automatic Stationery Ruler Screen Printing Machine with automatic loading system
Dust removal device

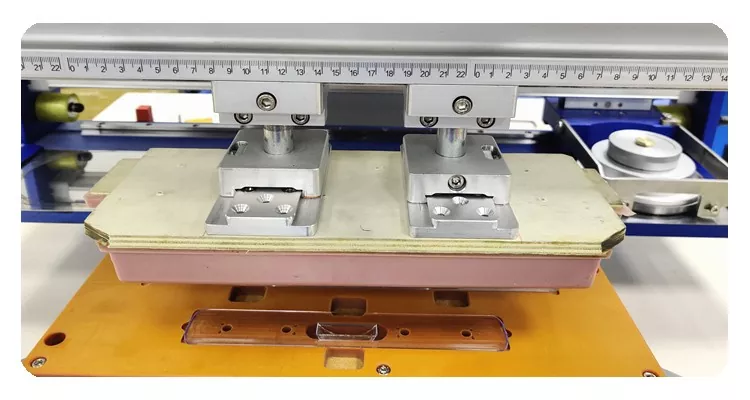

Printing workstation, can change steel plate for print different patter or logo on product

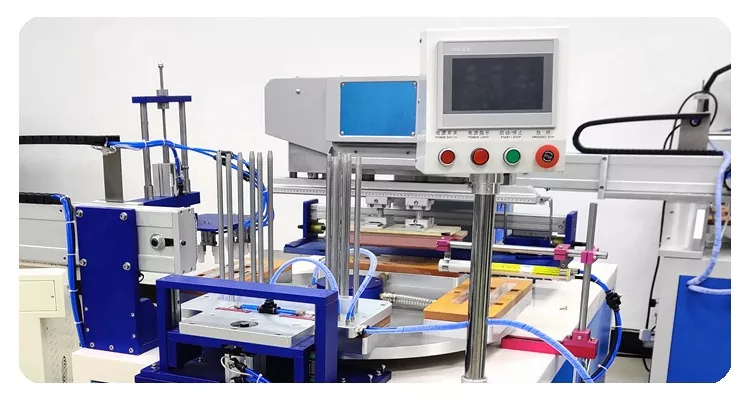

PLC touch screen panel to control
Equipped with UV Curing System and automatic unloading robot hand
