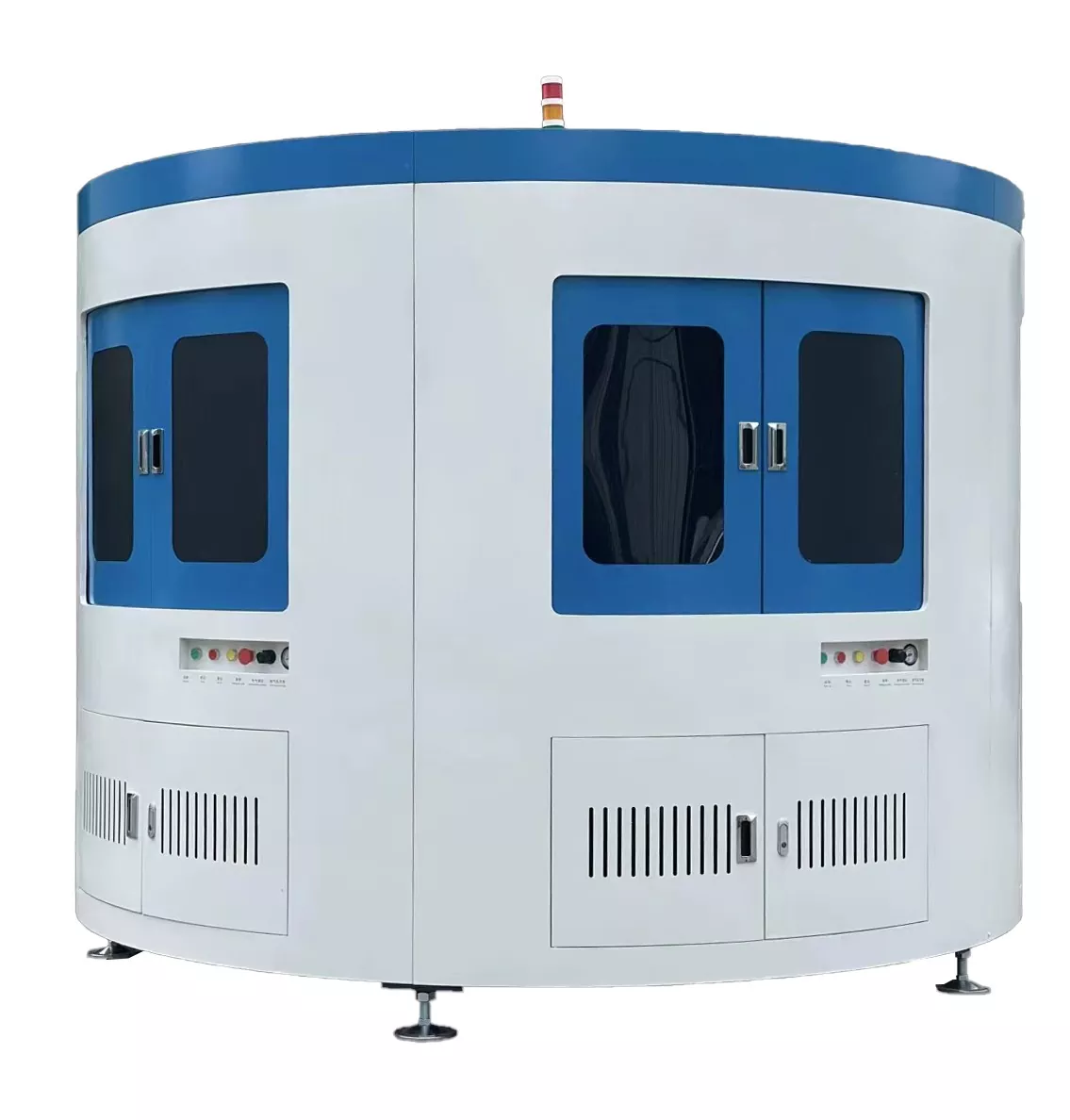

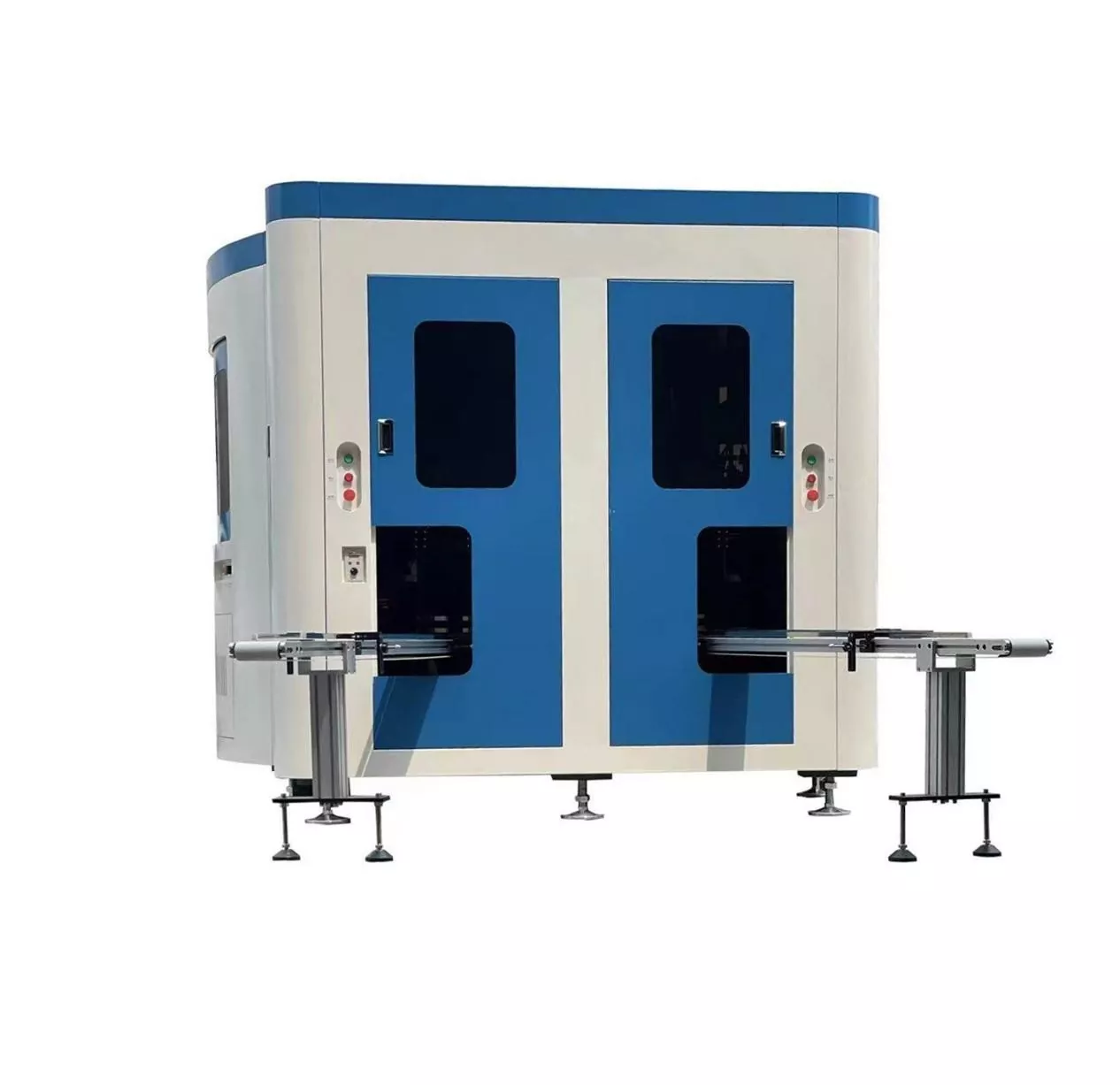

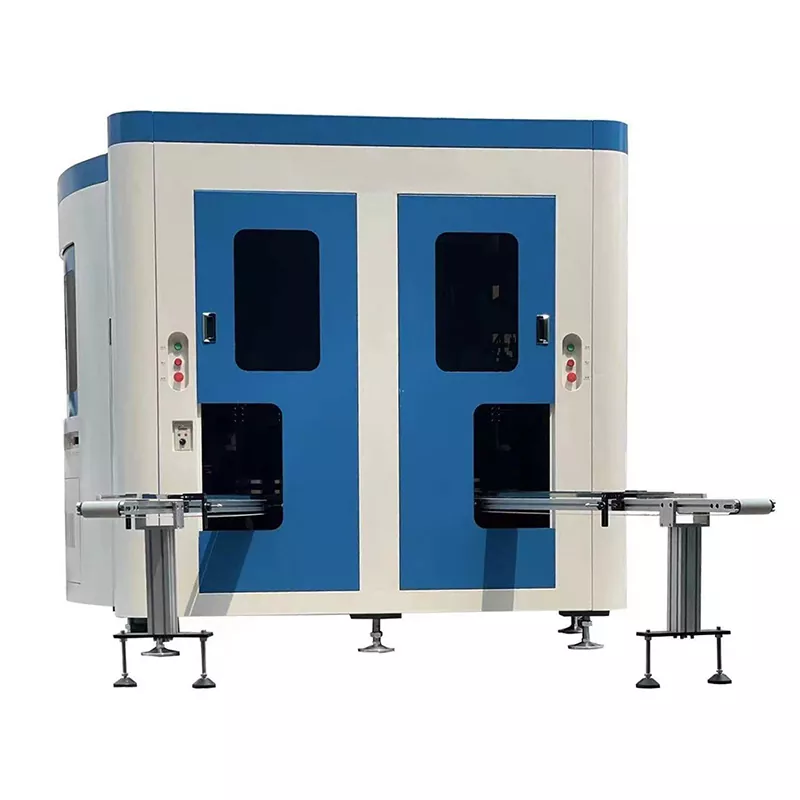

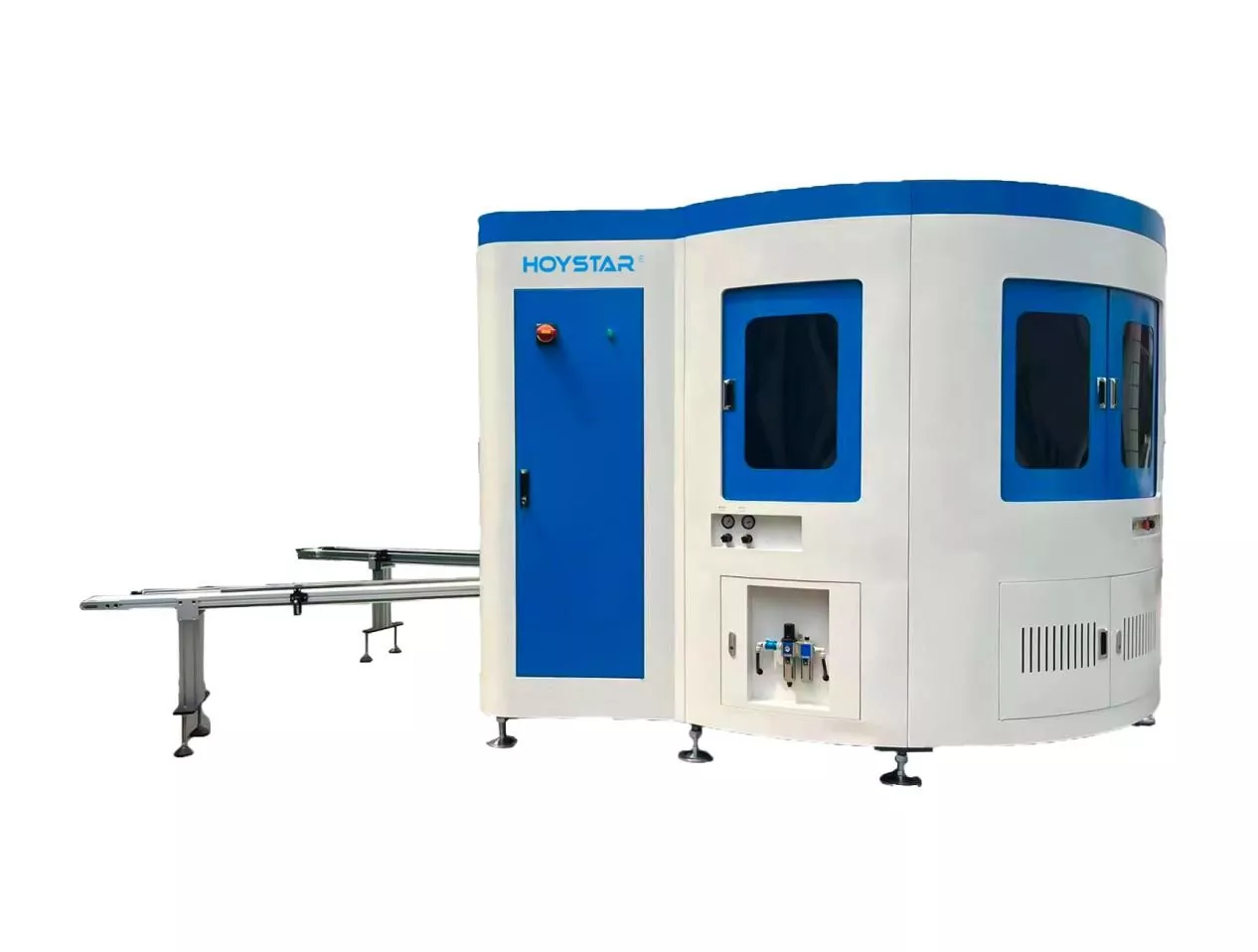

Full Automatic 3 Color Cups Cylindrical Screen Printing Machine

As the professional manufacturer and supplier, HOYSTAR Full Automatic 3 Color Cups Cylindrical Screen Printing Machine is expertly engineered for high-quality multi-color printing on the surfaces of cylindrical containers, making it the ideal solution for industries such as beverage, cosmetics, and pharmaceutical packaging—including plastic bottles, glass jars, and wine bottles.

Product Parameter (Specification)

Product Feature And Application

1:Automatic loading and unloading, three-color rotary disc fully servo multifunctional printing machine;

2:The height of the loading and unloading conveyor belt can be adjusted between 900mm and 120mm;

3:Equipped with CCD visual alignment for bottle body and reserved visual interface for bottle bottom;

4:All axes at each silk screen printing station adopt servo structure;

5:Bottle diameter of 70mm, machine speed of 40-60 pieces/minute;

6:The color accuracy is ± 0.2mm, and the qualification rate is not less than 97%;

7:Each UV workstation uses high-power LED lights, brand UVLEDTEK, model D051-1;

8:The top of the equipment is equipped with an air supply system, which facilitates the connection of internal air to the VOC facility main network for processing, and there must be no facilities or equipment on the top that obstruct the air supply to the main network;

Production Details
