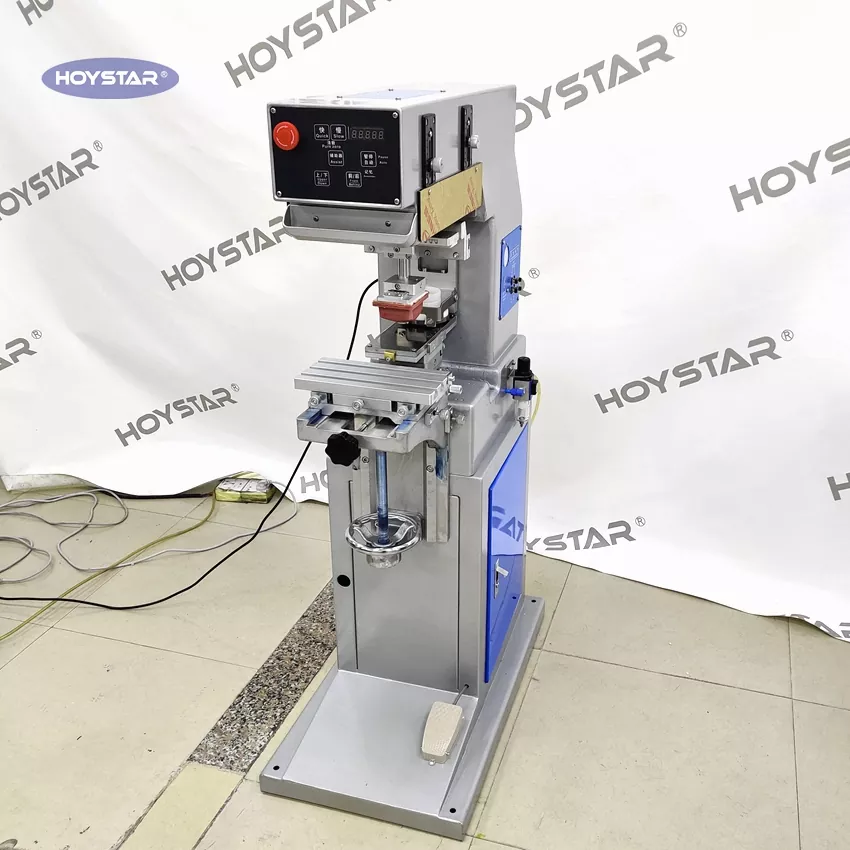

1 Color Pad Printing Machine

As the professional manufacturer and supplier, This HOYSTAR 1 Color Pad Printing Machine is a high-capability and cost-effective printing equipment. The machine delivers steady printing quality and suitable for printing a wide range of items such as electronic products, plastic shells, hardware products, stationery, small arts and crafts, as well as the small logos on the surface of gifts and more. Can meet diverse printing requirement of customer.

Product Parameter (Specification)

Product Feature And Application

For feature:

1.The 1 Color Pad Printing Machine utilizes an SCM (Single-Chip Microcomputer) to program IC operation sequences, offering a variety of printing mode selections for flexible application.

2.A built-in 4-digit automatic counter records and displays the total number of prints for easy counting.

3.The machine frame is made of zinc alloy with a metal-coated surface for improved durability and corrosion resistance.

4.Both the worktable and silicon pad allow adjustment in the X, Y, and Z directions to accommodate different printing positions.

5.Ink suction pressure and pad printing pressure can be adjusted separately for precise control.

6.It is equipped with an automatic front-and-back sliding ink leveling function, which prevents partial solidification of the printing ink effectively.

7.Each cylinder is fitted with an independent speed regulator, enabling separate adjustment of the operating speed for all cylinders.

8.The front-to-back spacing is extended, enabling the printing of larger-sized products to expand application scenarios.

9.The machine adopts fully imported pneumatic components from Taiwan, ensuring stable and reliable performance.

10.The entire machine operates smoothly, delivering high printing precision to meet consistent quality requirements.

11.All electrical components of the machine are installed in an open layout, facilitating convenient maintenance and repair work.

12.An emergency stop button is included, meeting relevant safety standards.

Production Details

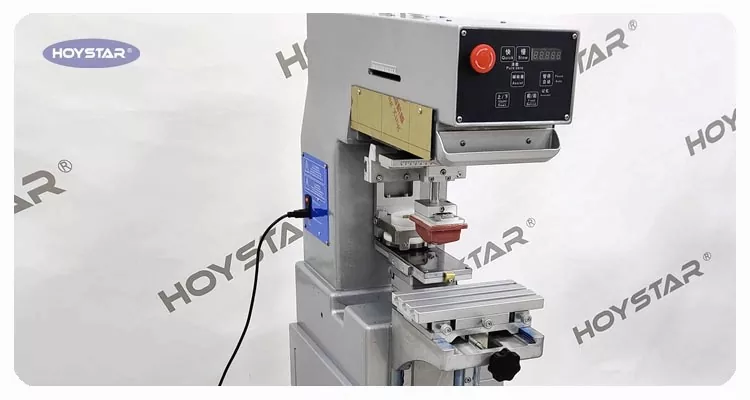

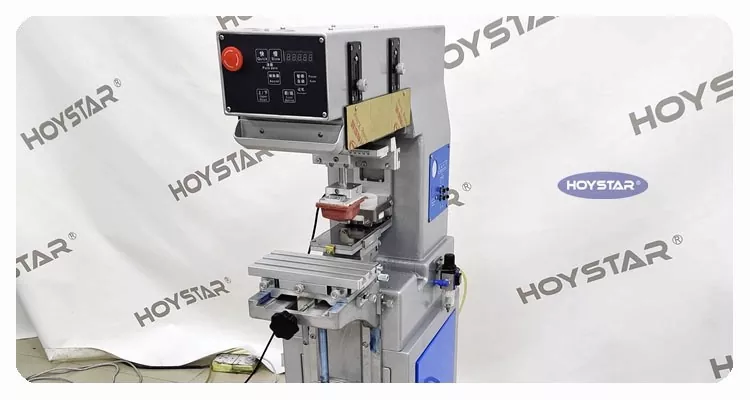

The 1 Color Pad Printing Machine with panel, very easy to operate. With both semi-automatic and automatic modes, operators can adapt to different production needs.

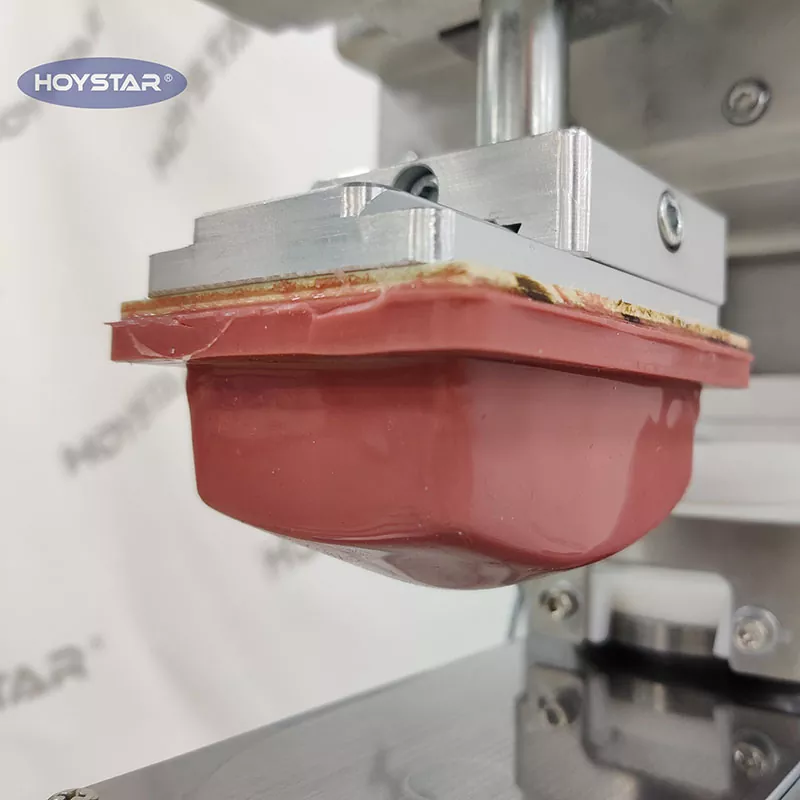

The ink suction pressure and the printing pad pressure can be adjusted independently, allowing for precise control over the printing process.

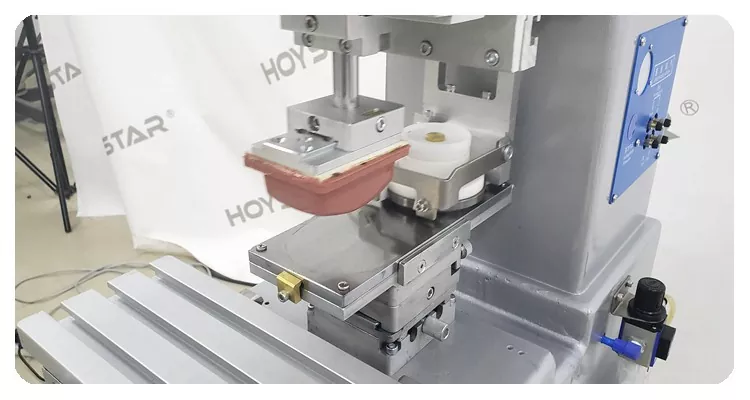

Close ink cup and steel plate, can change steel plate for print different pattern or logo

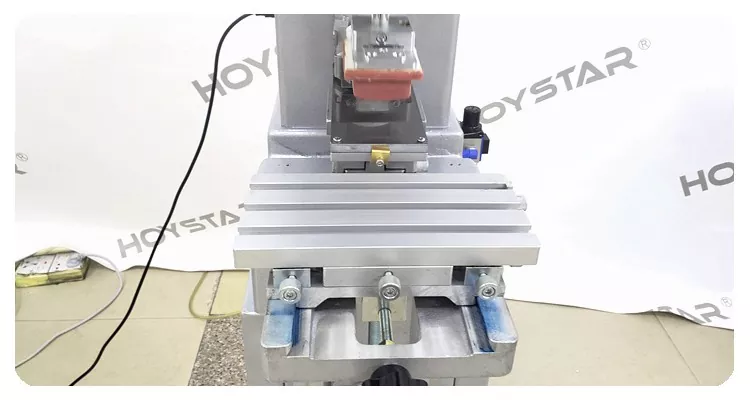

The machine worktable can be installed and replaced with different fixtures for printing products of different types and sizes
