Automatic 2 Colors Napkin Screen Printing Machine

HOYSTAR is a reliable manufacturer and supplier in China;This HOYSTAR Automatic 2 Colors Napkin Screen Printing Machine is specifically designed for fully automatic printing on napkins. Its streamlined printing process unfolds as follows: manually load the napkins onto the machine—automatic printing of the first color—automatic drying—automatic printing of the second color—automatic drying—automatic unloading—and automatic product collection.

Product Parameter (Specification)

Product Feature And Application

For feature:

1. The control system is built around a MITSUBISHI PLC and features an intuitive touch screen interface for simple operation.

2. Operators can select from three printing modes—manual, semi-automatic, or full-automatic—with digitally adjustable interval timing.

3. An electrically driven rotary worktable is fitted with a CHINT AC contactor and FOTEK photoelectric sensors from Taiwan.

4. The drying system includes lamps with adjustable brightness to accommodate different temperature requirements.

5. High-performance infrared lamps are used, rated for up to 1,500–2,000 hours of service life.

6. Equipped with a “No Product, No Print” function, the machine can be started or stopped freely during operation. Product sensors are fully adjustable through 360 degrees.

7. The system incorporates 8 workstations in total: 2 for printing, 3 for drying, and 3 for loading and unloading.

8.  Both printing heads can be controlled independently for flexible production.

9. It uses Taiwanese-brand pneumatic components and high-precision linear guide rails for front and back printing alignment.

10. Machine surface is metallic paint ,beautiful and dignified

Production Details

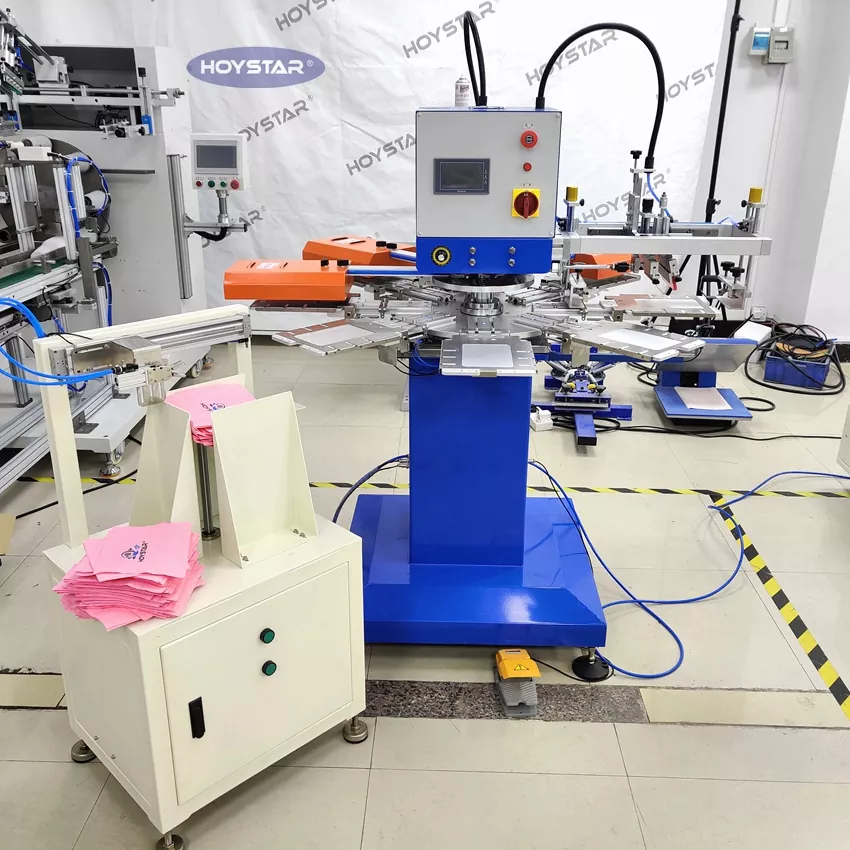

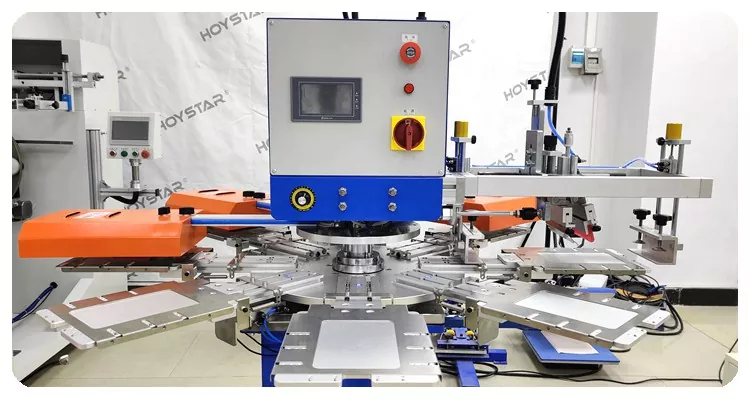

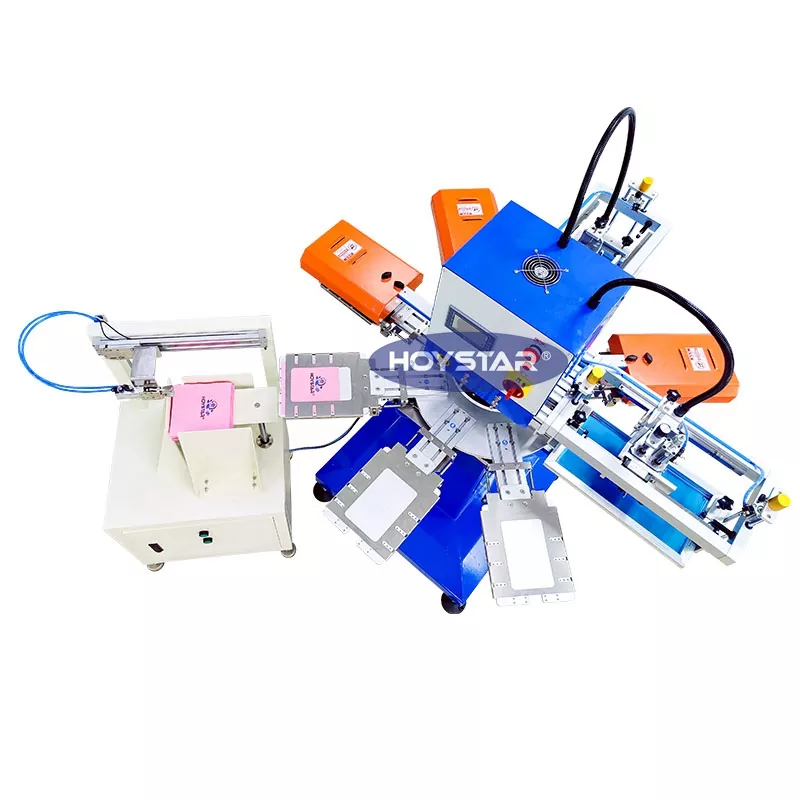

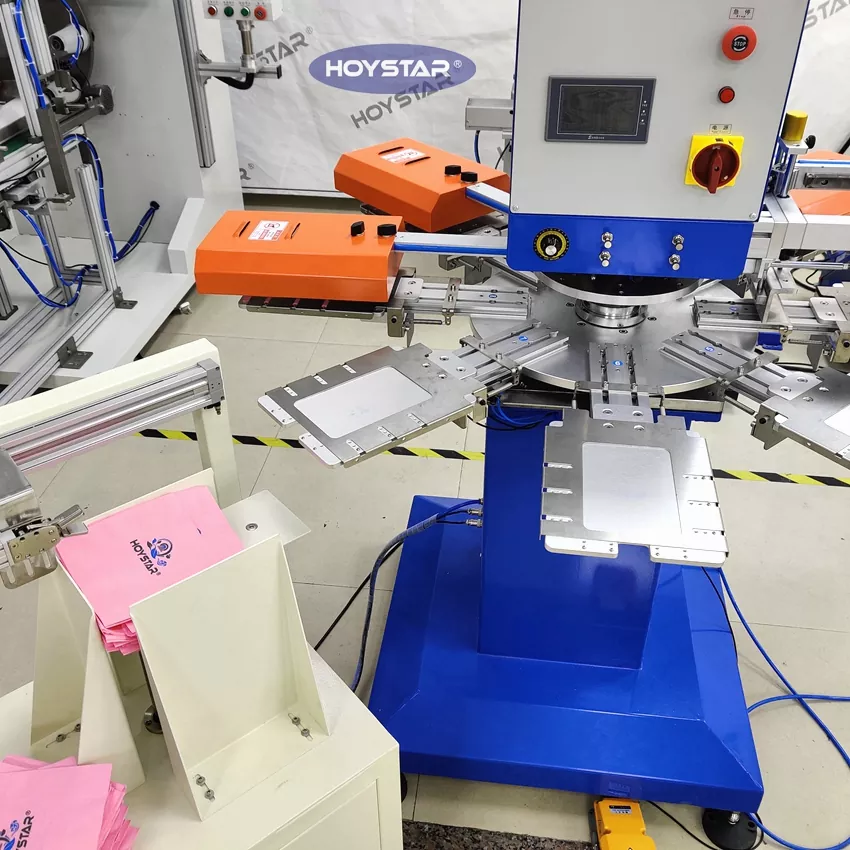

The Automatic 2 Colors Napkin Screen Printing Machine with 8 workstation

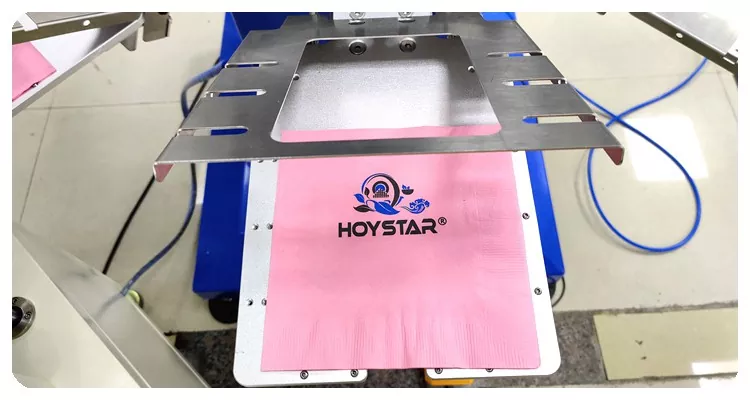

Custom fixtures for securing napkins for printing

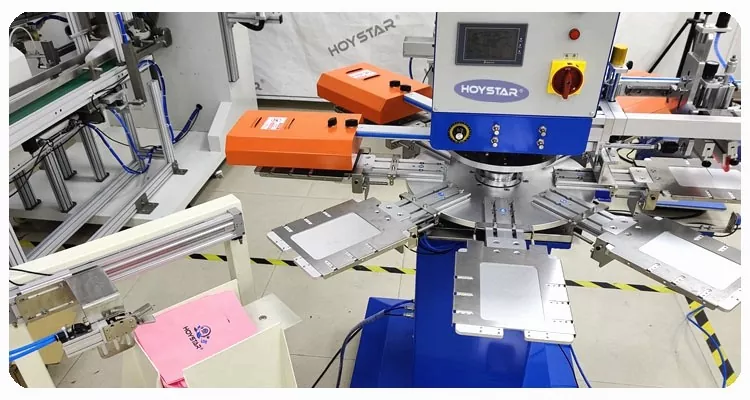

Equipped with drying system

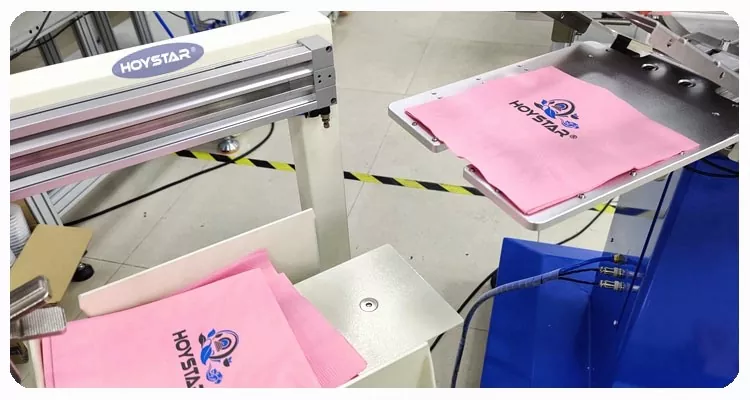

Equipped with automatic unloading table
