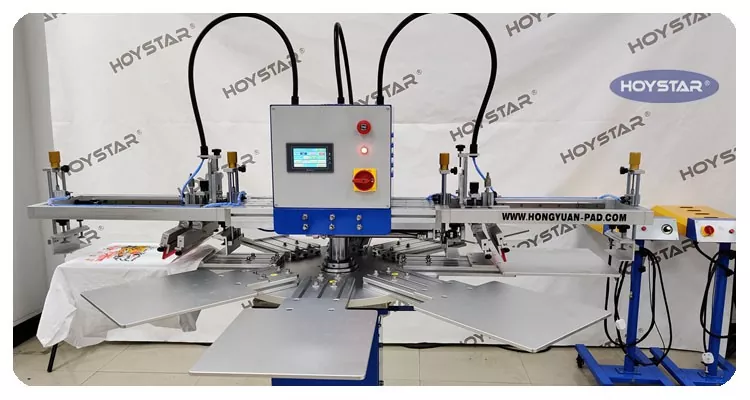

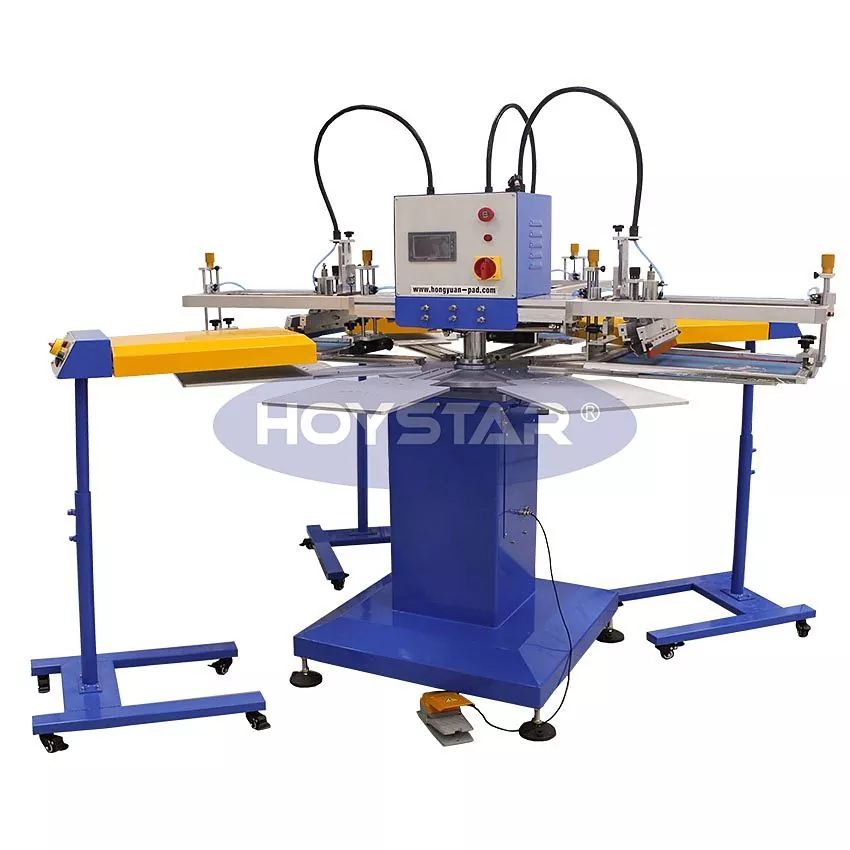

Automatic 3 Colors Screen Printer Machine For T-shirts and Bags

As the professional manufacturer and supplier, This HOYSTAR Automatic 3 Colors Screen Printer Machine For T-shirts and Bags is designed specifically for the textile industry. With an impressive output of up to 1200 pieces per hour can increases your production efficiency. Design for printing garment tags, labels, and bags, can change fixture for print different type of product. Machine features a rotary worktable that allows quick and convenient loading and unloading—minimizing downtime and maximizing throughput.

Product Parameter (Specification)

Product Feature And Application

For feature:

1. The machine control system features a MITSUBISHI PLC controller with a user-friendly touch screen interface for easy operation.

2. Three printing modes are available: manual, semi-automatic, and fully automatic, with digitally controlled printing interval times.

3. The rotating worktable is electrically controlled and equipped with a CHINT AC contactor and FOTEK photoelectric sensors from Taiwan.

4. The drying system features adjustable lamp brightness to accommodate varying temperature requirements.

5. High-quality infrared lamps are used, offering a lifespan of up to 1,500–2,000 hours.

6. The machine includes a "No Product, No Print" function, allowing flexible start/stop operation during printing. Product sensors are 360-degree adjustable.

7. It includes a total of 8 workstations: 3 for printing, 3 for drying, and 2 for loading/unloading.

8. Each of the three print heads can be controlled independently.

9. Pneumatic components and the front/back printing precision linear guide rails utilize high-quality Taiwanese brands.

10. The machine is finished with a metallic paint surface, providing an aesthetically pleasing and professional appearance.

Production Details

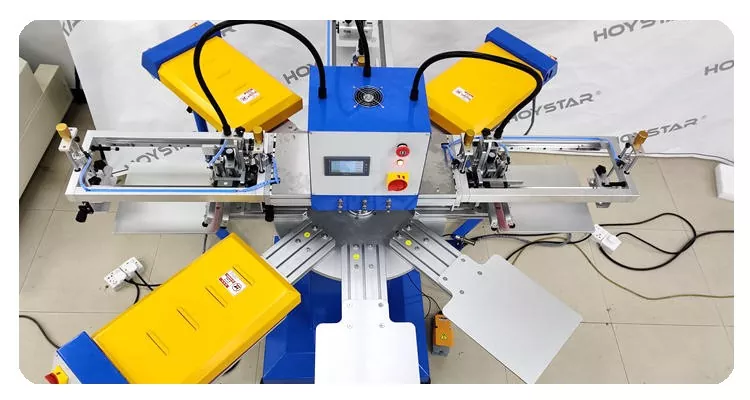

The Automatic 3 Colors Screen Printer Machine For T-shirts and Bags with a PLC and touch screen panel, operation is intuitive—even for new users. The interface allows easy adjustment of printing speed, printing mode, etc.

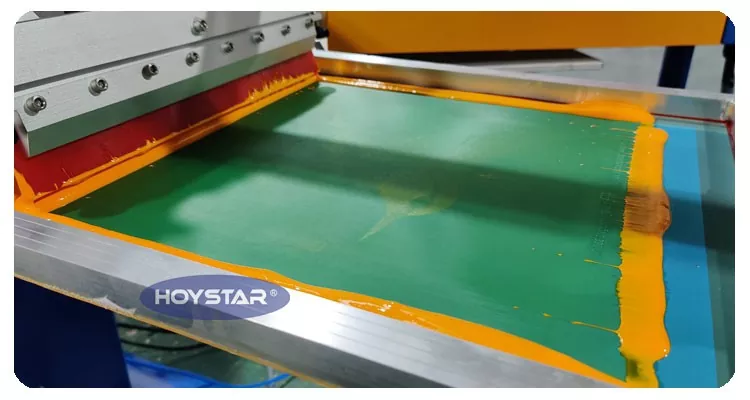

Can change screen frame for print different patter or logo on product and can use different size of screen frame.

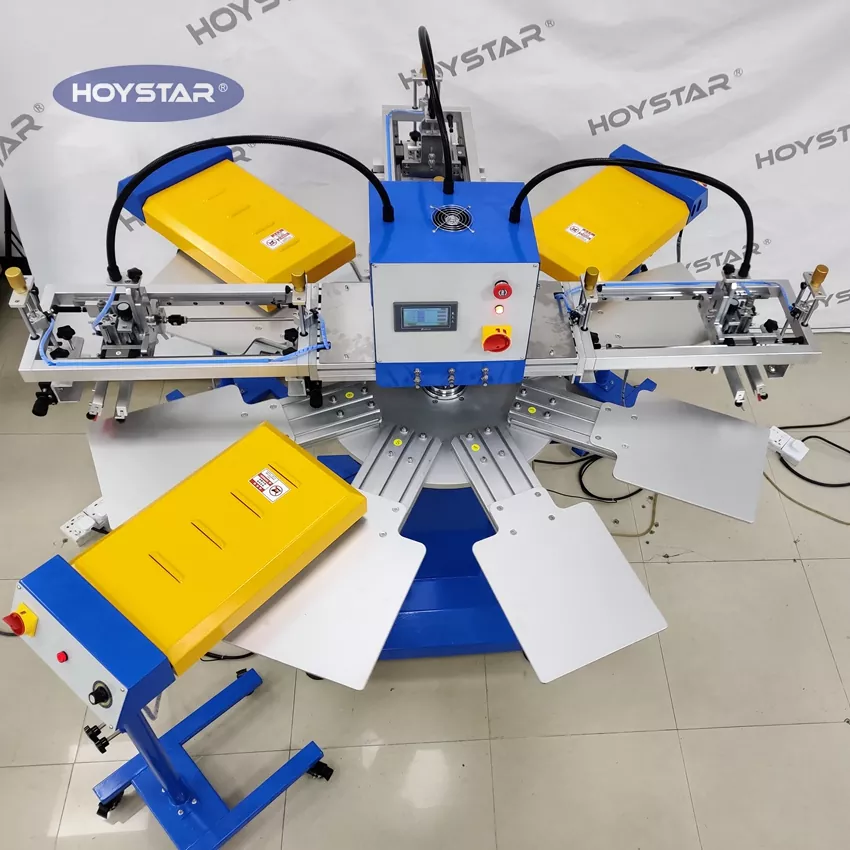

Equipped with 4 set of drying system, can dry the ink well
