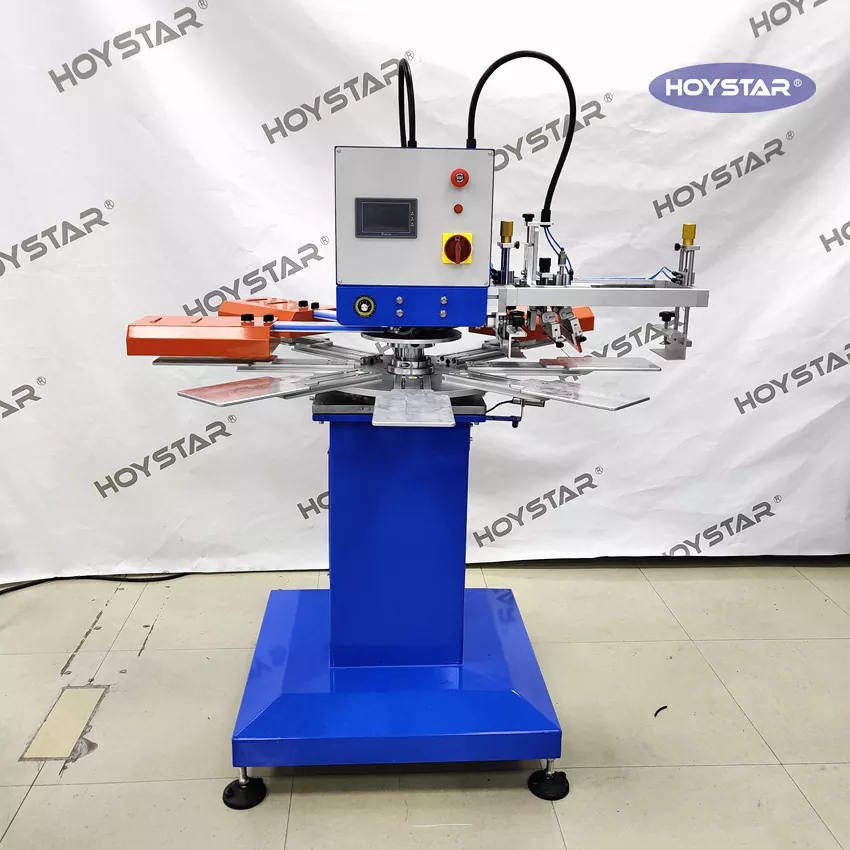

Rotary 2 Color Garment Tag Label Screen Printing Machine

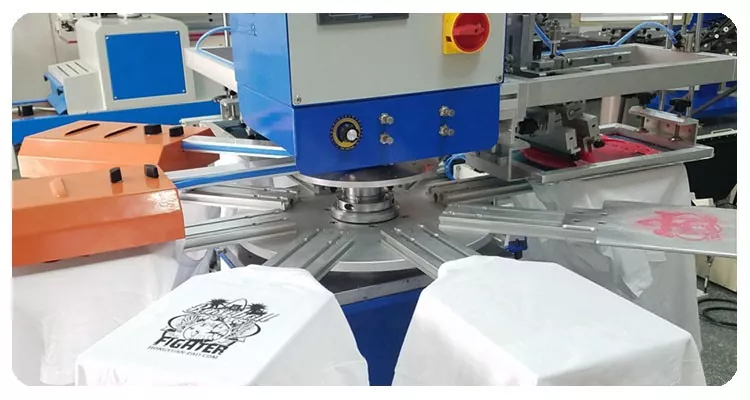

As the professional manufacturer and supplier, This HOYSTAR Rotary 2 Color Garment Tag Label Screen Printing Machine is designed specifically for the textile industry. With an impressive output of up to 1200 pieces per hour can increases your production efficiency. Design for printing garment tags, labels, and bags, can change fixture for print different type of product. Machine features a rotary worktable that allows quick and convenient loading and unloading—minimizing downtime and maximizing throughput.

Product Parameter (Specification)

Product Feature And Application

For feature:

1. Machine control system is equipped with a MITSUBISHI PLC controller and touch screen interface for user-friendly operation.

2. Three printing modes are available: manual, semi-automatic, and full-automatic, with digitally controlled printing interval timing.

3. The rotating worktable is electrically controlled, using FOTEK photoelectric sensors from Taiwan.

4. Drying system lamp brightness is adjustable, enabling customized temperature settings to meet various requirements.

5. High-quality infrared lamps provide a service life of up to 1500–2000 hours.

6. Equipped with a "No product, No print" function, allowing flexible start/stop during operation. Product sensors are 360-degree adjustable.

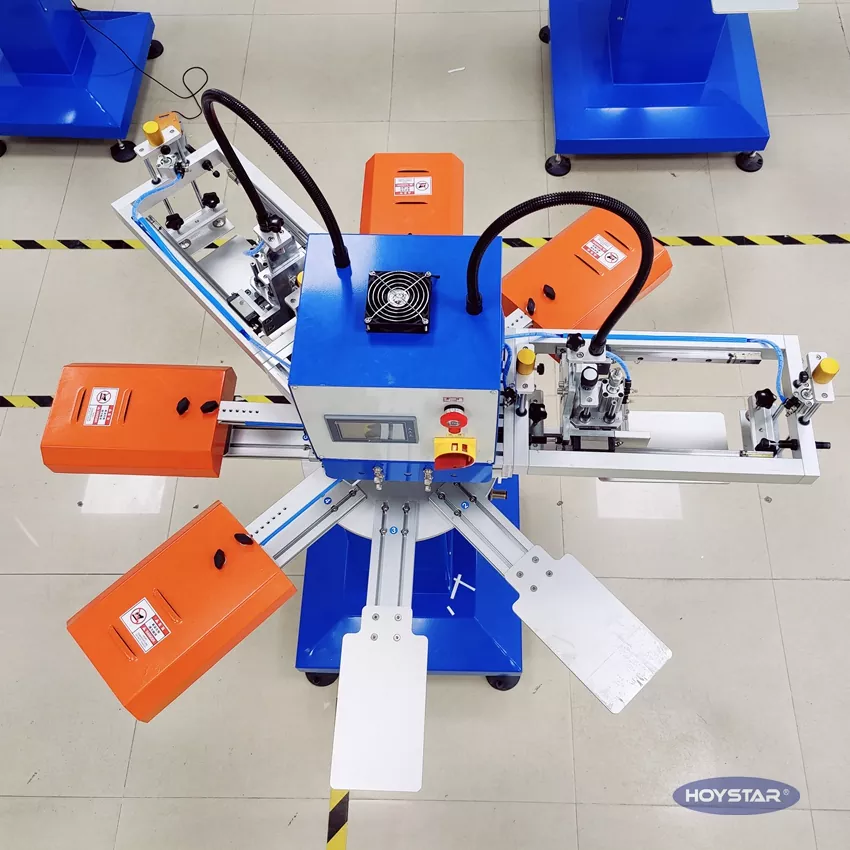

7. The machine includes 8 work stations in total: 2 for printing, 3 for drying, and 3 for loading/unloading.

8. The two printing heads can be controlled independently of each other.

9. Pneumatic components utilize Taiwan-brand parts, and printing precision is supported by Taiwan-brand linear guide rails at front and rear.

10. The machine surface features a metallic paint finish, offering an elegant and professional appearance.

Production Details

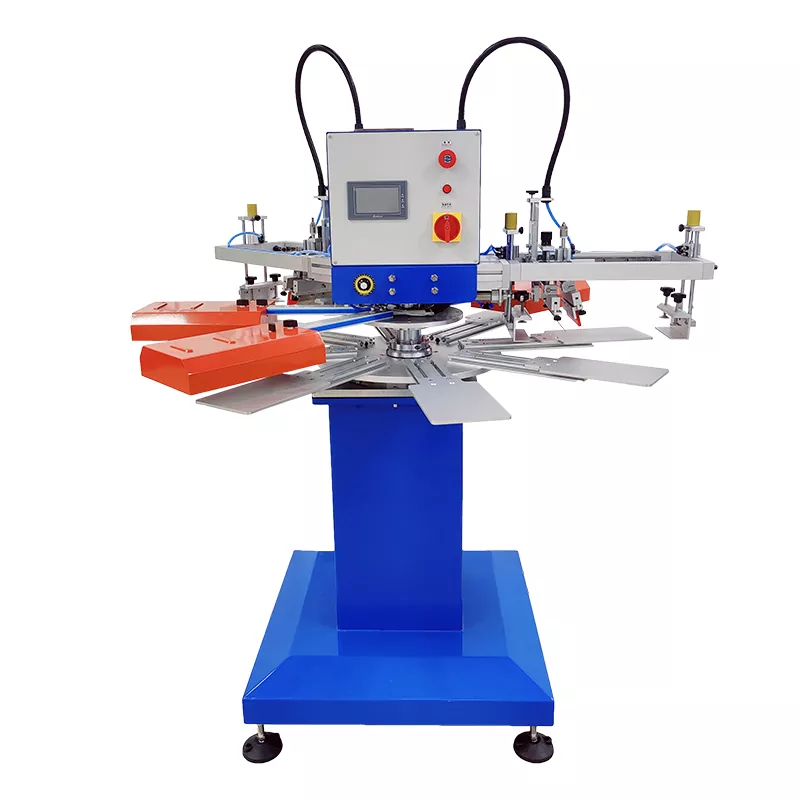

The Rotary 2 Color Garment Tag Label Screen Printing Machine with a PLC and touch screen panel, operation is intuitive—even for new users. The interface allows easy adjustment of printing speed, printing mode, etc.

Can change screen frame for print different patter or logo on product and can use different size of screen frame.

Equipped with 4 set of drying system, can dry the ink well
