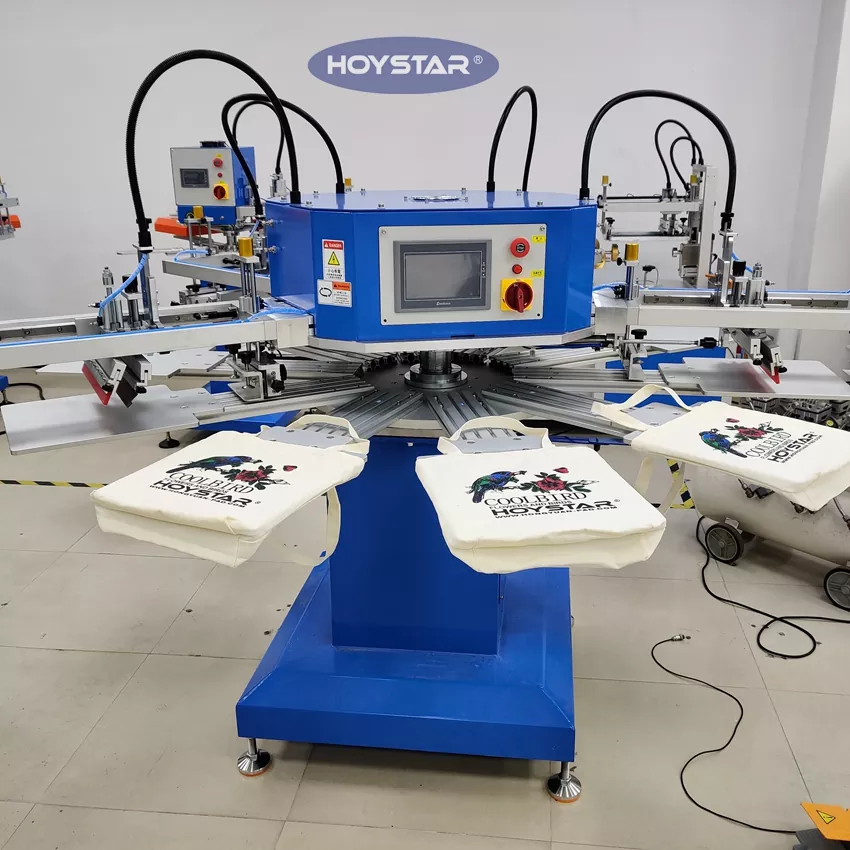

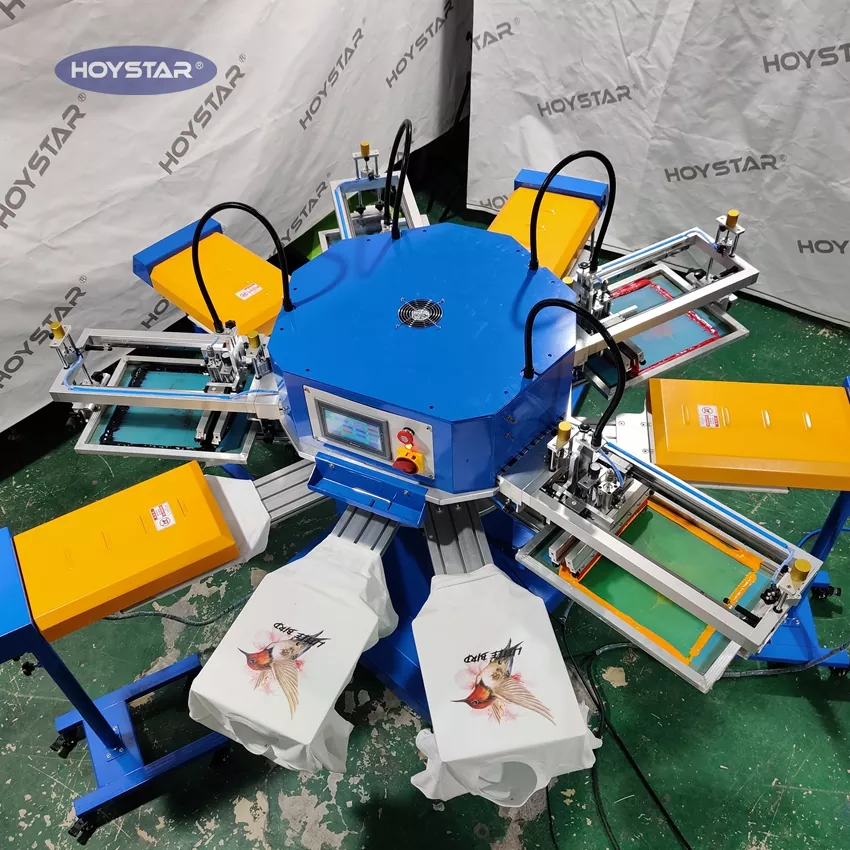

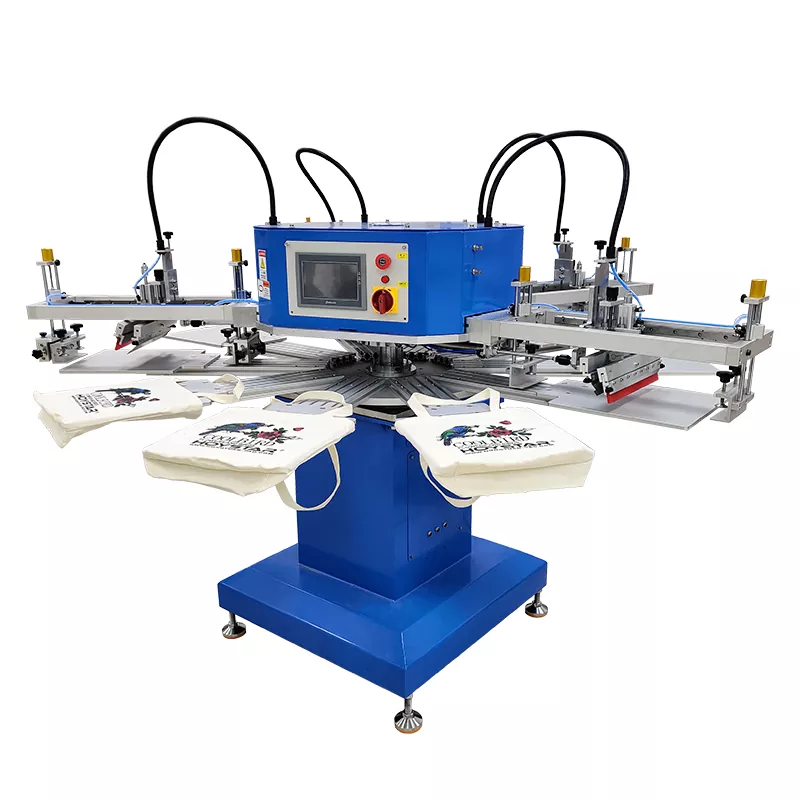

Automatic 4 Color bags T-Shirt Screen Printing Machine

As the professional manufacturer and supplier,  This HOYSTAR Automatic 4 Color bags T-Shirt Screen Printing Machine is designed specifically for the textile industry. With an impressive output of up to 1200 pieces per hour can increases your production efficiency. Design for printing garment tags, labels, and bags, can change fixture for print different type of product. Machine features a rotary worktable that allows quick and convenient loading and unloading—minimizing downtime and maximizing throughput.

Product Parameter (Specification)

Product Feature And Application

For feature:

1. The machine is equipped with a MITSUBISHI PLC-based control system and features a user-friendly touchscreen interface.

2. Have three printing modes—Manual, Semi-Automatic, and Fully Automatic—with digital control over printing intervals.

3. The rotary worktable is electrically driven and use CHINT AC contactors along with Taiwan FOTEK photoelectric sensors for reliable performance.

4. The drying system can adjust lamp brightness and customize temperature based on production needs.

5. High-quality infrared heating lamps are installed, offering a long service life of up to 1500–2000 hours.

6. The "No product no printing" function prevents unnecessary printing, and the machine supports flexible start/stop during operation. The product detection sensor is adjustable to 360° for optimal positioning.

7. The system includes a total of 10 work stations: 4 for printing, 4 for drying, and 2 dedicated to loading and unloading.

8. Each of the four printing heads operates independently for greater process adaptability.

9. Pneumatic components are from leading Taiwan brands, and the printing carriages are guided by high-precision Taiwan-made linear rails for consistent accuracy.

10. The machine is finished with a metallic paint surface, providing an aesthetically pleasing and professional appearance.

Production Details

The Automatic 4 Color bags T-Shirt Screen Printing Machine with a PLC and touch screen panel, operation is intuitive—even for new users. The interface allows easy adjustment of printing speed, printing mode, etc.

Can change screen frame for print different patter or logo on product and can use different size of screen frame.

Equipped with 4 set of drying system, can dry the ink well
